Toyota Sienna Service Manual: Removal

Toyota Sienna Service Manual / Supplemental restraint system / Rear airbag sensor / Removal

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

1. PRECAUTION

CAUTION: Be sure to read "PRECAUTION" thoroughly before servicing.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE REAR DOOR SCUFF PLATE RH

4. REMOVE REAR DOOR WEATHERSTRIP RH

5. REMOVE BACK DOOR WEATHERSTRIP

6. REMOVE BACK DOOR SCUFF PLATE

7. REMOVE LAP BELT OUTER ANCHOR COVER

8. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH

9. REMOVE AIR DUCT ASSEMBLY

Remove the screw and the air duct assembly.

10. REMOVE REAR AIRBAG SENSOR LH

REMOVE REAR AIRBAG SENSOR LH

Disconnect the connector from the rear airbag sensor LH.

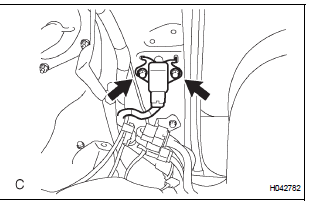

Remove the 2 bolts and the rear airbag sensor LH.
