Toyota Sienna Service Manual: Rear airbag sensor

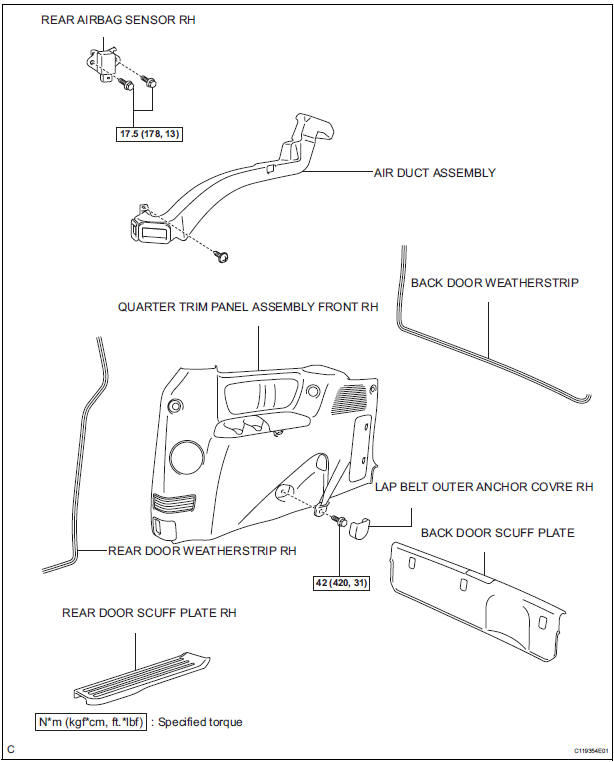

COMPONENTS

COMPONENTS

Installation
HINT:  Use the same procedures for the RH side and LH side.  The procedures listed below are for the LH side. 1. INSTALL SIDE AIRBAG SENSOR LH  Check that the ignition ...

On-vehicle inspection
1. INSPECT REAR AIRBAG SENSOR (VEHICLE NOT INVOLVED IN COLLISION)  Perform a diagnostic system check. 2. INSPECT REAR AIRBAG SENSOR (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEP ...
