Toyota Sienna Service Manual / Exterior / Rear spoiler / Removal

1. REMOVE BACK DOOR CENTER GARNISH

REMOVE BACK DOOR CENTER GARNISH

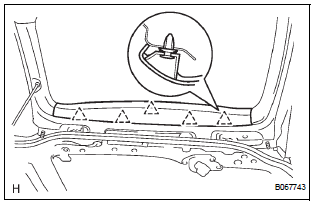

Using a clip remover, disengage the 5 clips to remove the back door center garnish.

2. REMOVE REAR SPOILER

Disconnect the center stop light connector.

REMOVE REAR SPOILER

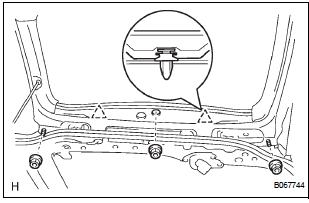

Remove the 3 nuts.
Using a clip remover, disengage the 2 clips to remove the rear spoiler.

3. REMOVE HIGH MOUNTED STOP LIGHT ASSEMBLY

Installation

1. INSTALL HIGH MOUNTED STOP LIGHT ASSEMBLY 2. INSTALL REAR SPOILER Install the rear spoiler with the 3 nuts and 2 clips. Connect the center stop light connector. 3. INSTALL BACK DOOR CE ...
