Toyota Sienna Service Manual: Installation

1. INSTALL HIGH MOUNTED STOP LIGHT ASSEMBLY

2. INSTALL REAR SPOILER

INSTALL REAR SPOILER

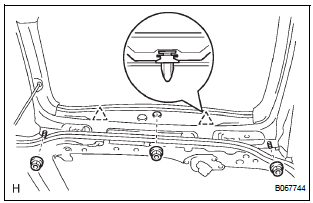

  1. Install the rear spoiler with the 3 nuts and 2 clips.
  2. Connect the center stop light connector.

3. INSTALL BACK DOOR CENTER GARNISH

INSTALL BACK DOOR CENTER GARNISH

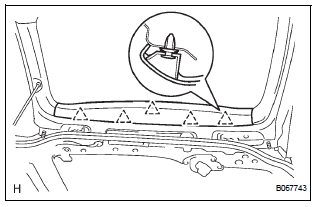

  1. Engage the 5 clips to install the back door center garnish.
Removal
1. REMOVE BACK DOOR CENTER GARNISH Using a clip remover, disengage the 5 clips to remove the back door center garnish. 2. REMOVE REAR SPOILER Disconnect the center stop light connecto ...

Front door glass weatherstrip
COMPONENTS ...
