Toyota Sienna Service Manual: Removal
1. REMOVE FRONT DOOR WINDOW FRAME MOULDING
- Remove the screw.
- Using a heat light, heat the front door window frame
moulding between 40 to 60 C (104 to 140 F).
NOTICE: Do not heat the front door window frame moulding excessively.
- Slide the front door window frame moulding upward to remove the moulding.
NOTICE: If reusing the moulding, take care not to damage the front door window frame moulding.

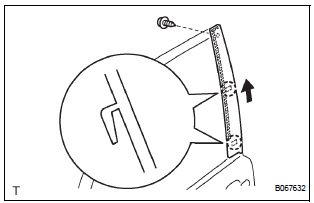

Front door window frame moulding
COMPONENTS
...
Installation
1. INSTALL FRONT DOOR WINDOW FRAME MOULDING
Remove the tape from the front door window frame
moulding.
Clean the contact surface of the vehicle body with
white gasoline.
Clean the oute ...
