Toyota Sienna Service Manual: Removal

1. REMOVE ENGINE AND TRANSAXLE

HINT: (See page EM-26)

2. REMOVE AUTOMATIC TRANSMISSION WITH TRANSFER

HINT: (See page AX-164)

3. REMOVE TRANSFER ASSEMBLY

HINT: (See page TF-8)

4. REMOVE CTR DIFFERENTIAL LOCK SLEEVE

HINT: (See page TF-13)

5. REMOVE TRANSFER CASE OIL SEAL

REMOVE TRANSFER CASE OIL SEAL

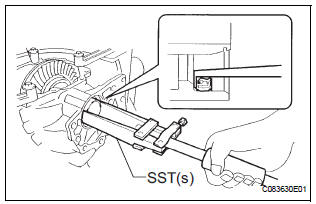

(a) Using SST(s), remove the transfer case oil seal from the transfer case.

SST 09308-00010

NOTICE: Do not damage the oil-seal-fitted surface of the case.

Transfer case oil seal
COMPONENTS ...

Installation
1. INSTALL TRANSFER CASE OIL SEAL (a) Using SST, install anew transfer case oil seal to the transfer case at the position shown in the illustration. SST 09387-00010, 09950-70010 (09951-07150) ...
