Toyota Sienna 2010-2024 Owners Manual: Stowing the spare tire

Toyota Sienna. Stowing the spare tire

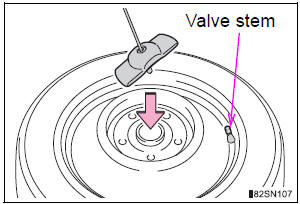

  1. Lay down the tire with the outer side (valve stem) facing up, and install the holding bracket.

Toyota Sienna. Stowing the spare tire

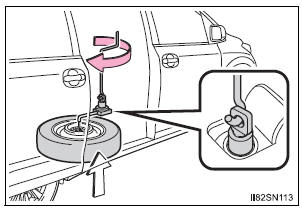

  1. Turn the jack handle clockwise to raise the tire until the tire is in the correct position as the jack handle skips.
  2. Stow the tools.

The compact spare tire

After completing the tire change

The tire pressure warning system must be reset.

When using the compact spare tire

As the compact spare tire is not equipped with a tire pressure warning valve and transmitter, low inflation pressure of the spare tire will not be indicated by the tire pressure warning system. Also, if you replace the compact spare tire after the tire pressure warning light comes on, the light remains on.

When the compact spare tire is equipped

The vehicle becomes lower when driving with the compact spare tire compared to when driving with standard tires

If you have a flat front tire on a road covered with snow or ice

Install the compact spare tire on one of the rear wheels of the vehicle.

Perform the following steps and fit tire chains to the front tires:

  1. Replace a rear tire with the compact spare tire.
  2. Replace the flat front tire with the tire removed from the rear of the vehicle.
  3. Fit tire chains to the front tires.
WARNING

When using the compact spare tire

  • Remember that the compact spare tire provided is specifically designed for use with your vehicle. Do not use your compact spare tire on another vehicle.
  • Do not use more than one compact spare tire simultaneously.
  • Replace the compact spare tire with a standard tire as soon as possible.
  • Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations that cause sudden engine braking.

When the compact spare tire is attached

The vehicle speed may not be correctly detected, and the following systems may not operate correctly:

  • ABS & Brake assist
  • VSC
  • TRAC
  • Dynamic radar cruise control (if equipped)
  • Cruise control (if equipped)
  • PCS (if equipped)
  • Navigation system (if equipped)

Also, not only can the following system not be utilized fully, but it may even negatively affect the drive-train components:

  • AWD system (if equipped)

Speed limit when using the compact spare tire

Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is installed on the vehicle.

The compact spare tire is not designed for driving at high speeds. Failure to observe this precaution may lead to an accident causing death or serious injury.

After using the tools and jack

Before driving, make sure all the tools and jack are securely in place in their storage location to reduce the possibility of personal injury during a collision or sudden braking.

When stowing the flat tire

  • Make sure the third seats are in their original position.
  • Secure it using a tire strap. Otherwise, the flat tire may fly out in case of sudden braking or an accident, resulting in death or serious injury.

NOTICE

When loosening or tightening the spare tire clamp bolt

Do not use an impact wrench. Use the adapter socket and jack handle.

Be careful when driving over bumps with the compact spare tire installed on the vehicle

The vehicle becomes lower when driving with the compact spare tire compared to when driving with standard tires. Be careful when driving over uneven road surfaces.

Driving with tire chains and the compact spare tire

Do not fit tire chains to the compact spare tire.

Tire chains may damage the vehicle body and adversely affect driving performance.

When replacing the tires

When removing or fitting the wheels, tires or the tire pressure warning valve and transmitter, contact your Toyota dealer as the tire pressure warning valve and transmitter may be damaged if not handled correctly.

To avoid damage to the tire pressure warning valves and transmitters

When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Toyota dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and transmitter when replacing the tire.

After taking out or stowing the spare tire

Make sure to secure the tire carrier by tightening the clamp bolt to prevent the holding bracket from hitting the under body of the vehicle during driving.

Using the tire carrier

  • As the tire carrier is designed for use with the compact spare tire, it cannot be used with standard tires.
  • If the spare tire is flat, do not use the tire carrier, as the tire may not be held securely.
