Toyota Sienna Service Manual: Suspension
SERVICE DATA
A: Ground clearance of front wheel center
B: Ground clearance of lower suspension arm No. 2 set bolt center
C: Ground clearance of rear axle carrier bush set bolt center
D: Ground clearance of rear wheel center
TORQUE SPECIFICATIONS

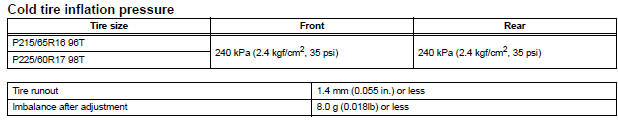

TIRE AND WHEEL
SERVICE DATA
TORQUE SPECIFICATIONS
BRAKE CONTROL
TORQUE SPECIFICATIONS
BRAKE

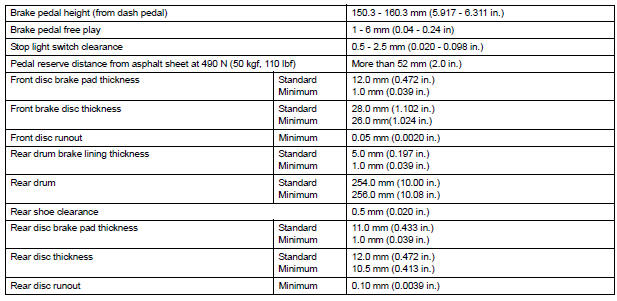

SERVICE DATA

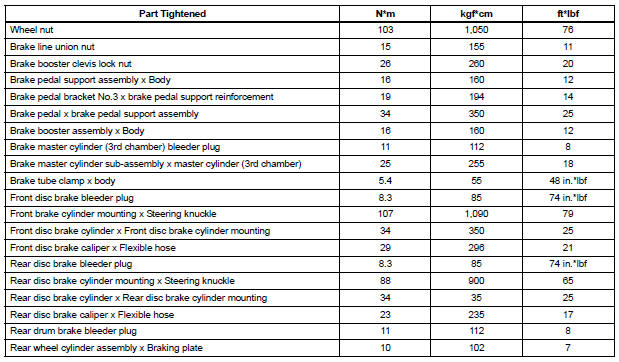

TORQUE SPECIFICATIONS

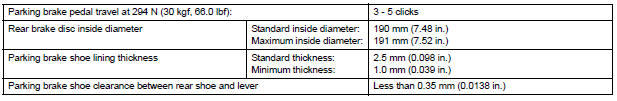

PARKING BRAKE
SERVICE DATA
TORQUE SPECIFICATIONS
STEERING COLUMN
SERVICE DATA

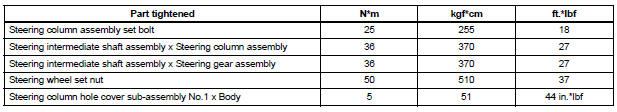

TORQUE SPECIFICATIONS

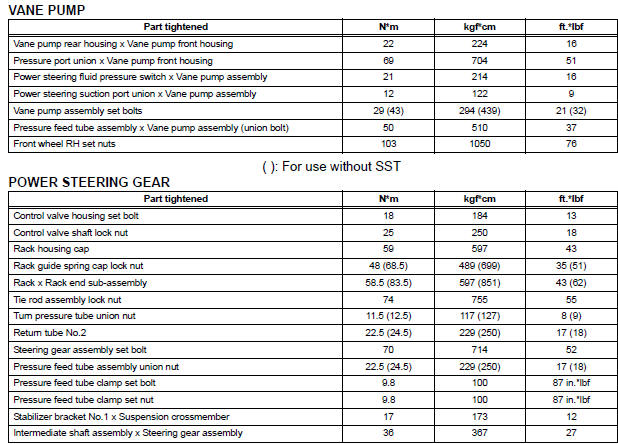

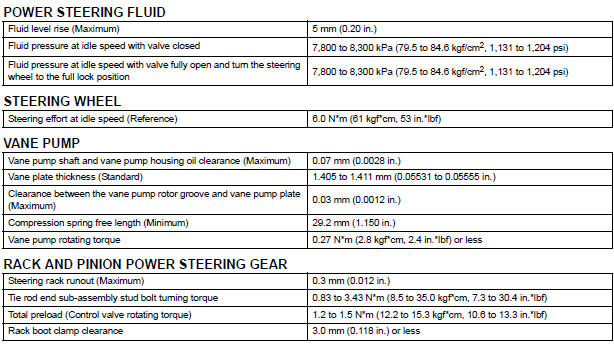

POWER STEERING
SERVICE DATA
TORQUE SPECIFICATIONS
( ): For use without SST

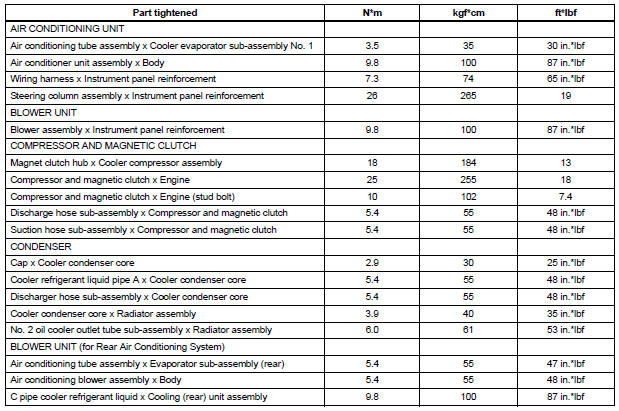

AIR CONDITIONING
SERVICE DATA
TORQUE SPECIFICATIONS
SUPPLEMENTAL RESTRAINT SYSTEM

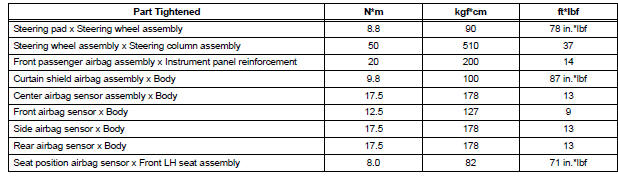

TORQUE SPECIFICATIONS

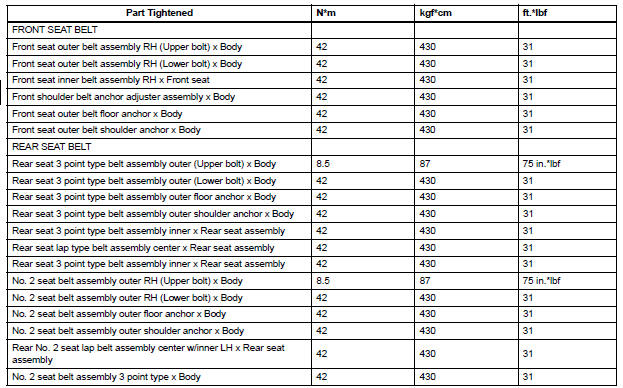

SEAT BELT
TORQUE SPECIFICATIONS
CRUISE CONTROL
TORQUE SPECIFICATIONS
LIGHTING
TORQUE SPECIFICATIONS
WIPER AND WASHER

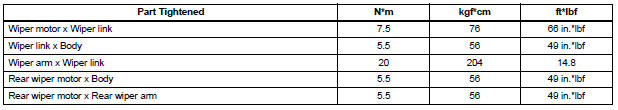

TORQUE SPECIFICATIONS
AUDIO / VISUAL
TORQUE SPECIFICATIONS
HORN
TORQUE SPECIFICATIONS
WINDSHIELD / WINDOWGLASS
TORQUE SPECIFICATIONS
MIRROR
TORQUE SPECIFICATIONS
INSTRUMENT PANEL
TORQUE SPECIFICATIONS

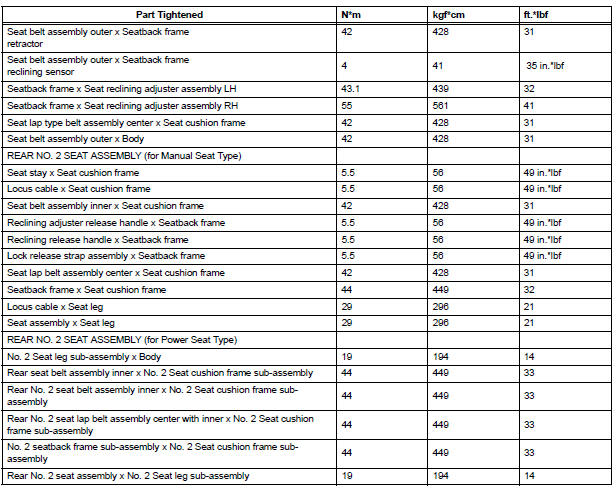

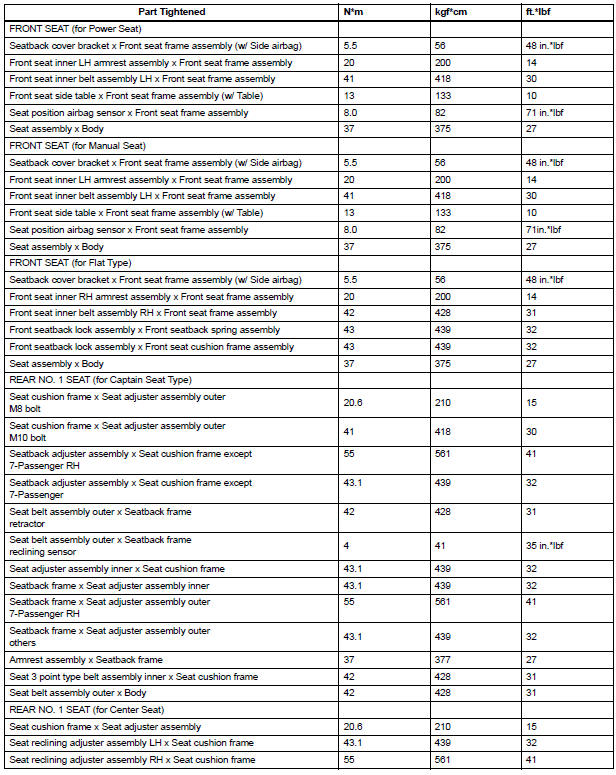

SEAT
TORQUE SPECIFICATIONS

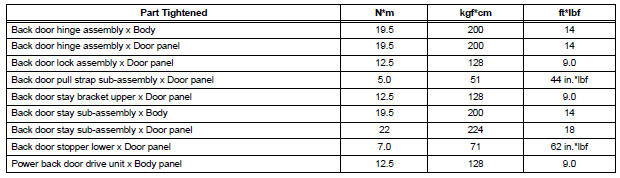

ENGINE HOOD / DOOR

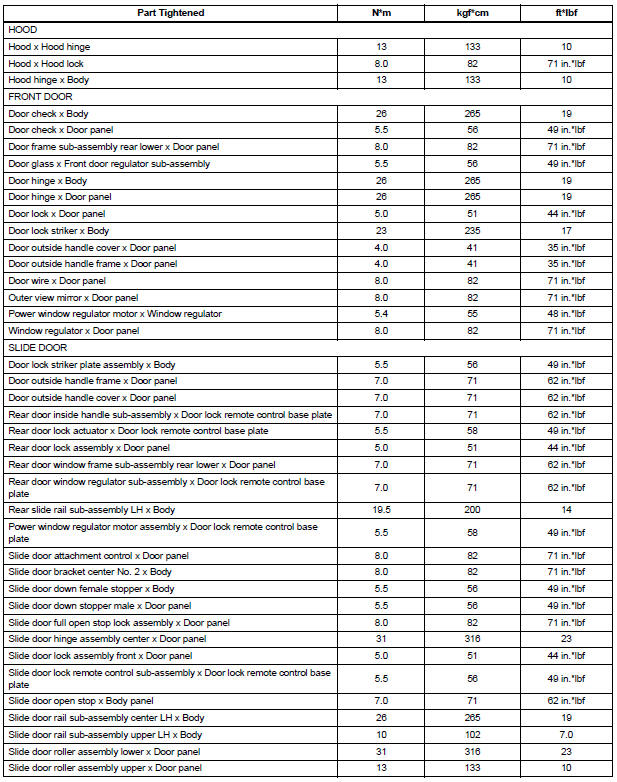

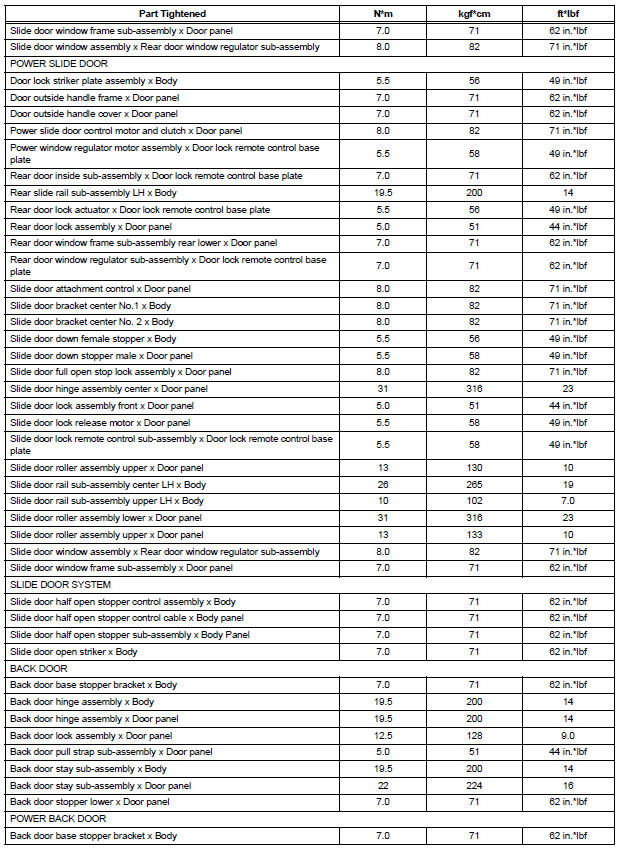

TORQUE SPECIFICATIONS
EXTERIOR

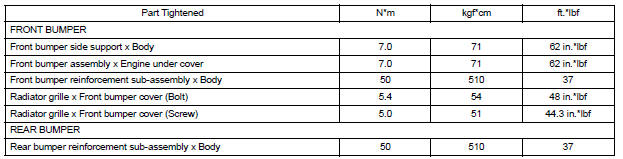

TORQUE SPECIFICATIONS
SLIDING ROOF
SERVICE DATA
TORQUE SPECIFICATIONS
Transfer
SERVICE DATA
TORQUE SPECIFICATIONS
PROPELLER SHAFT
SERVICE DATA
TORQUE SPECIFICATIONS
DRIVE SHAFT
SERVICE DATA
TORQUE SPECIFICATIONS
DIFFERENTIAL
SERVICE DATA
...
Maintenance
...
Other materials:
Diagnosis system
1. CHECK DLC3
The vehicle's ECU uses ISO 15765-4 for
communication protocol. The terminal arrangement
of the DLC3 complies with SAE J1962 and matches
the ISO 15765-4 format.
NOTICE:
*: Before measuring the resistance, leave the
vehicle as is for at least 1 minute and do ...
Reassembly
1. INSTALL OVERDRIVE DIRECT CLUTCH O-RING
(a) Coat an O-ring with ATF, and install it to the direct
clutch drum.
NOTICE:
Make sure that the O-ring is not twisted or
pinched when it is installed.
2. INSTALL OVERDRIVE DIRECT CLUTCH DRUM SUBASSEMBLY
(a) Coat the direct clutch drum with A ...
