Toyota Sienna Service Manual: Transfer

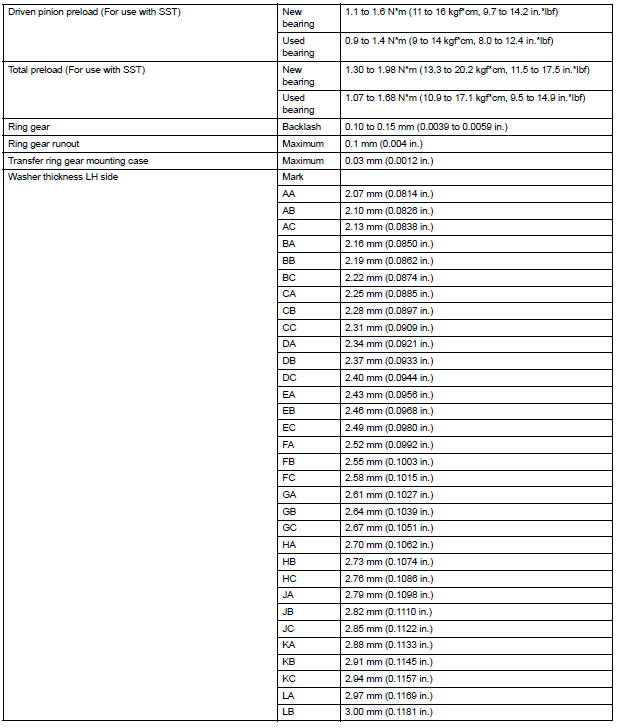

SERVICE DATA

SERVICE DATA

SERVICE DATA

SERVICE DATA

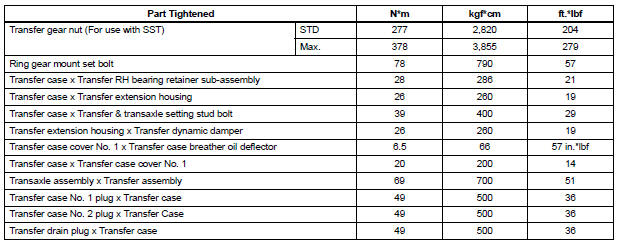

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

PROPELLER SHAFT

SERVICE DATA

SERVICE DATA

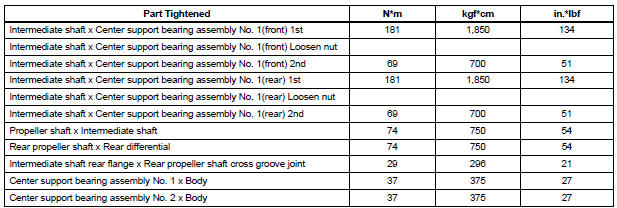

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

DRIVE SHAFT

SERVICE DATA

SERVICE DATA

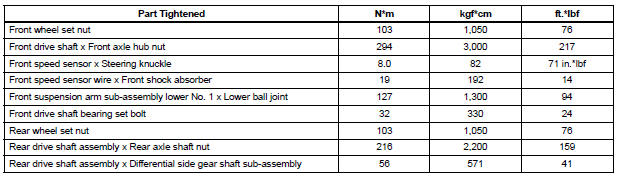

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

DIFFERENTIAL

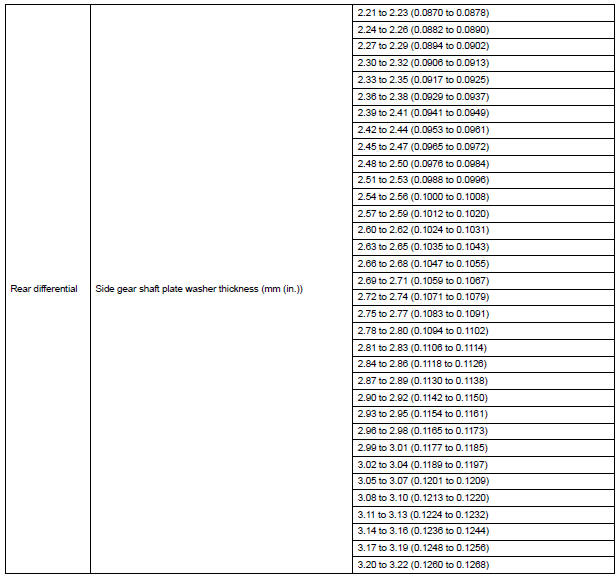

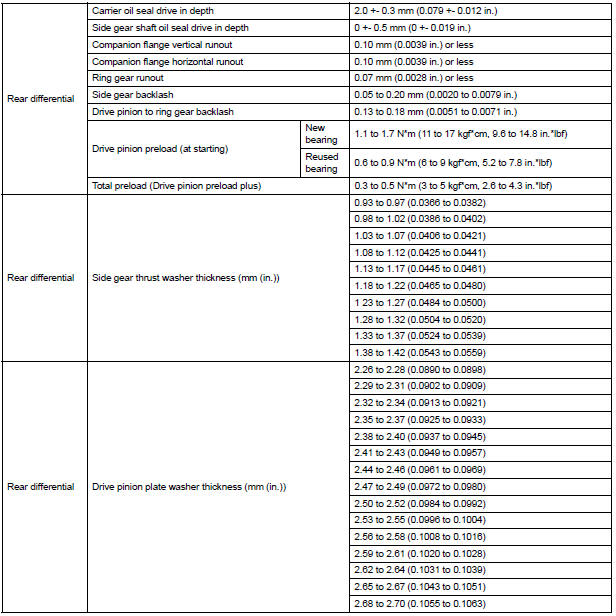

SERVICE DATA

SERVICE DATA

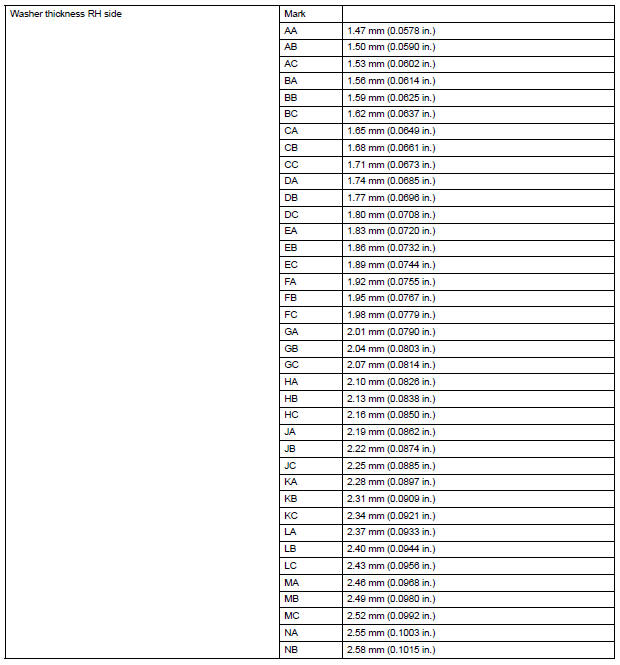

SERVICE DATA

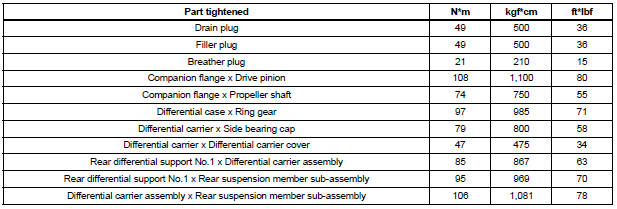

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

AXLE

SERVICE DATA

SERVICE DATA

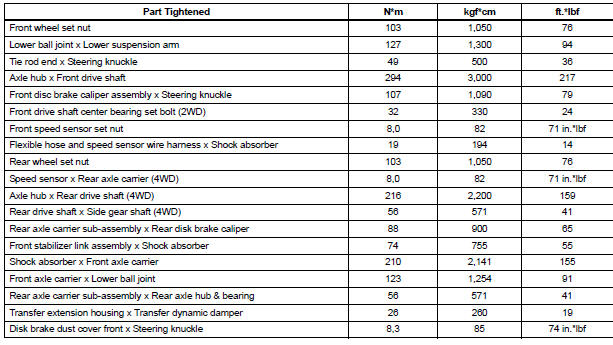

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

U151f automatic transaxle

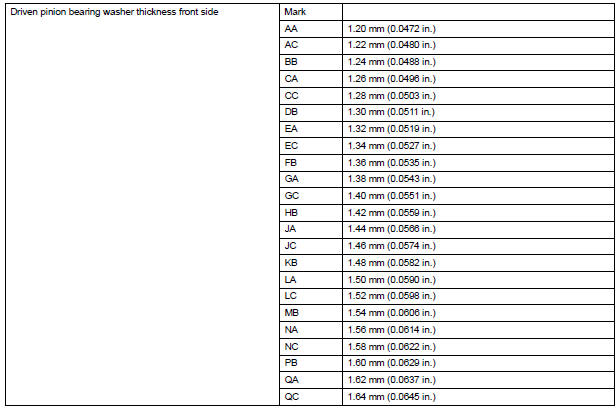

Service data TORQUE SPECIFICATIONS ...

Suspension
SERVICE DATA A: Ground clearance of front wheel center B: Ground clearance of lower suspension arm No. 2 set bolt center C: Ground clearance of rear axle carrier bush set bolt center D: Groun ...
