Toyota Sienna Service Manual: Terminals of ECU

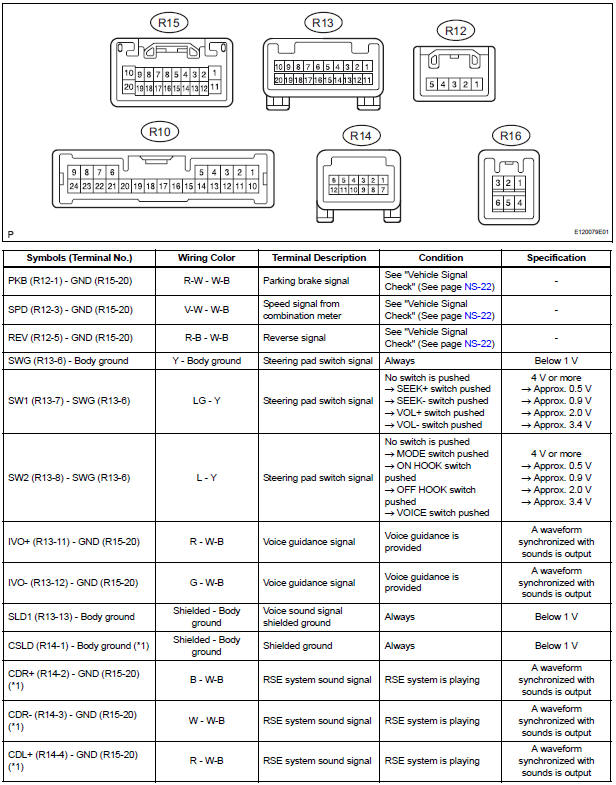

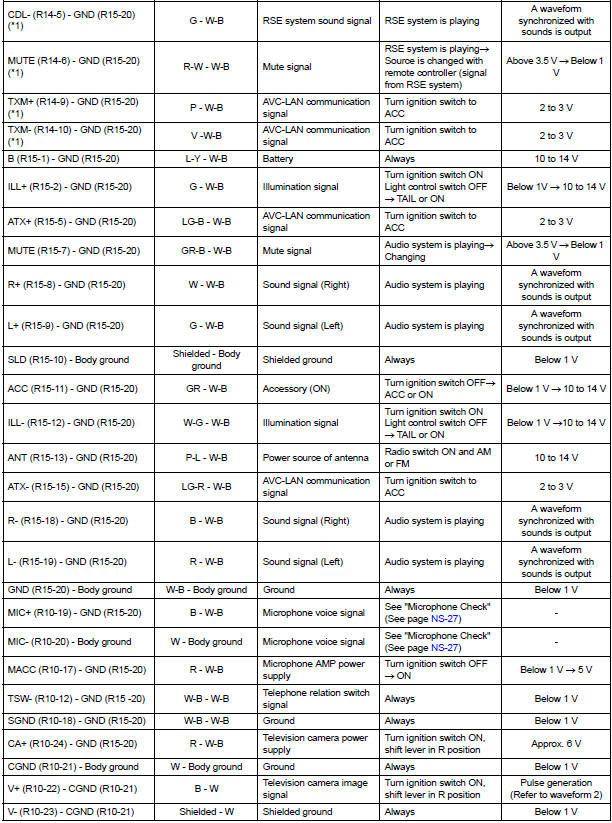

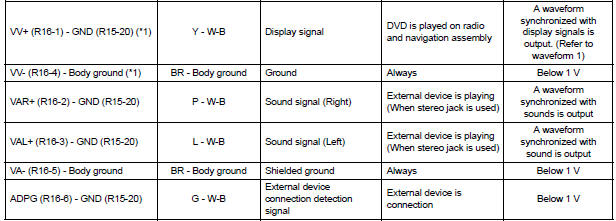

1. RADIO AND NAVIGATION ASSEMBLY

RADIO AND NAVIGATION ASSEMBLY

RADIO AND NAVIGATION ASSEMBLY

RADIO AND NAVIGATION ASSEMBLY

*1: with Rear Seat Entertainment System

RADIO AND NAVIGATION ASSEMBLY

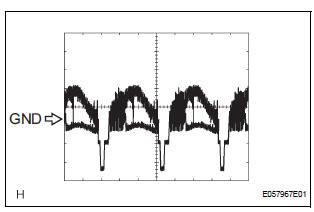

  1.  Reference: waveform 1

HINT:

RADIO AND NAVIGATION ASSEMBLY

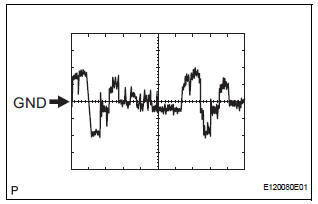

  1. Reference: waveform 2

HINT:

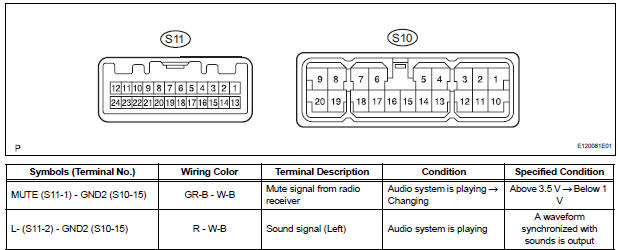

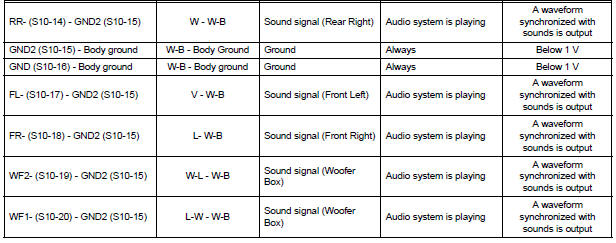

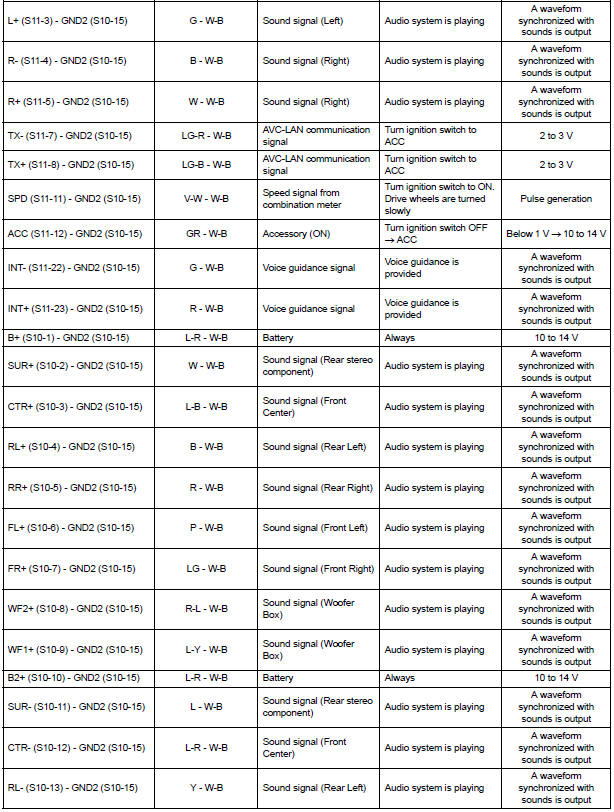

2. STEREO COMPONENT AMPLIFIER

STEREO COMPONENT AMPLIFIER

STEREO COMPONENT AMPLIFIER

STEREO COMPONENT AMPLIFIER

3. TELEVISION DISPLAY ASSEMBLY

Problem symptoms table
HINT:  Before inspecting the suspected areas listed in the table below, check the fuse and relay.  Before inspecting the suspected areas listed in the table below, check the DTCs. ...

DTC check / clear
HINT:  Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual v ...
