Toyota Sienna Service Manual: Inspection

1. INSPECT BRAKE VACUUM CHECK VALVE ASSEMBLY

INSPECT BRAKE VACUUM CHECK VALVE ASSEMBLY

(a) Check the vacuum check valve.

(1) Slide the clip and disconnect the vacuum hose.

(2) Remove the vacuum check valve.

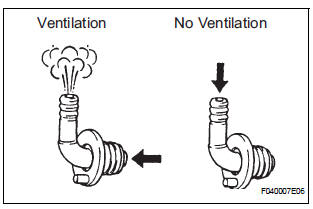

(3) Check that there is ventilation from the booster to the engine, and no ventilation from the engine to the booster.

(4) If any fault is found, replace the vacuum check valve.

Removal
NOTICE: Do not adjust the brake booster push rod. Do not change the combination of the diameter converting unit and brake. 1. REMOVE FRONT WHEEL 2. DRAIN BRAKE FLUID NOTICE: Wash the bra ...

Installation
1. INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY (a) Install the brake vacuum check valve assembly and check valve grommet to the brake booster assembly. 2. INSTALL BRAKE BOOSTER GASKET (a) Install ...
