Toyota Sienna Service Manual: Turn signal light switch

Toyota Sienna Service Manual / Lighting / Turn signal light switch

ON-VEHICLE INSPECTION

1. INSPECT TURN SIGNAL FLASHER CIRCUIT

INSPECT TURN SIGNAL FLASHER CIRCUIT

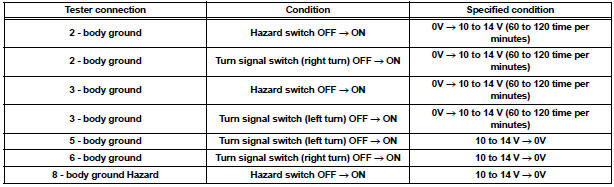

  1.  Measure voltage between the terminals as shown in the chart below.

Voltage

Voltage

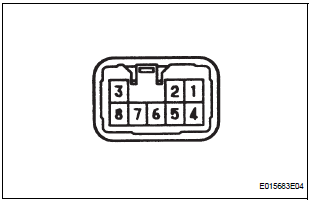

  1. Connect the connector to turn the signal flasher and turn the ignition switch ON, and inspect the wire harness side connector from the back side as shown in the chart.

Voltage

Voltage

Headlight dimmer switch
COMPONENTS REMOVAL 1. REMOVE STEERING COLUMN LOWER COVER 2. REMOVE STEERING COLUMN UPPER COVER 3. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY  Disconnect the connector.  Releas ...

Hazard warning switch
INSPECTION 1. HAZARD WARNING SIGNAL SWITCH ASSEMBLY  Check that there is resistance between the terminals at each switch position as shown in the chart. Resistance Inspect ...
