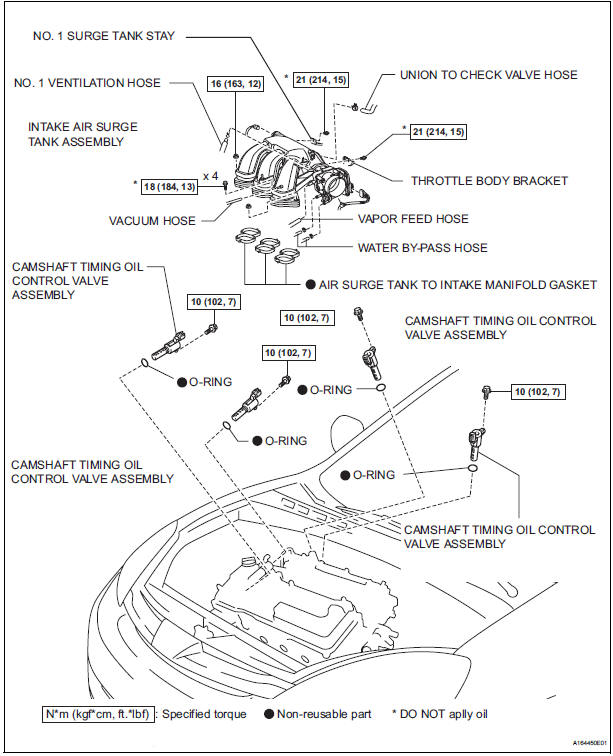

COMPONENTS

Camshaft timing oil control valve assembly
...

On-vehicle inspection
1. INSPECT CAMSHAFT TIMING CONTROL VALVE ASSEMBLY  Connect the intelligent tester to the DLC3.  Turn the ignition switch to the ON position.  Start the engine and warm it up ...

Other materials:

Pressure Control Solenoid "C" Performance (Shift Solenoid Valve SL3)
SYSTEM DESCRIPTION The ECM uses signals from the vehicle speed sensor to detect the actual gear position (1st, 2nd, 3rd, 4th or 5th gear). Then the ECM compares the actual gear with the shift schedule in the ECM memory to detect mechanical troubles of the shift solenoid valves and valve bo ...

How to proceed with troubleshooting
HINT: *: Use the intelligent tester. 1 VEHICLE BROUGHT TO WORKSHOP 2 CUSTOMER PROBLEM ANALYSIS (a) Confirm problem symptoms 3 CHECK MULTIPLEX COMMUNICATION SYSTEM* Check if the multiplex communication system DTC is output. HINT: The center airbag sensor assembly of this system ...

Installation
1. Connect inlet sub-assembly (a) Connect the inlet hose to the radiator. (b) Install the inlet sub-assembly to the radiator with the bolt. Torque: 7.1 N*m (72 kgf*cm, 63 in.*lbf)V 2. Install no. 2 Radiator support (A) install the no. 2 Radiator support to the radiator with the 2 ...
