Toyota Sienna Service Manual: Components

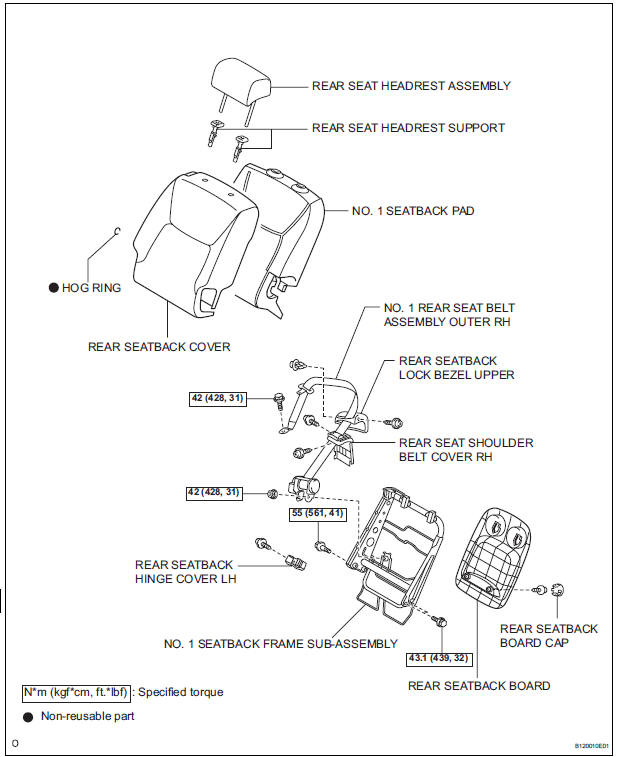

COMPONENTS

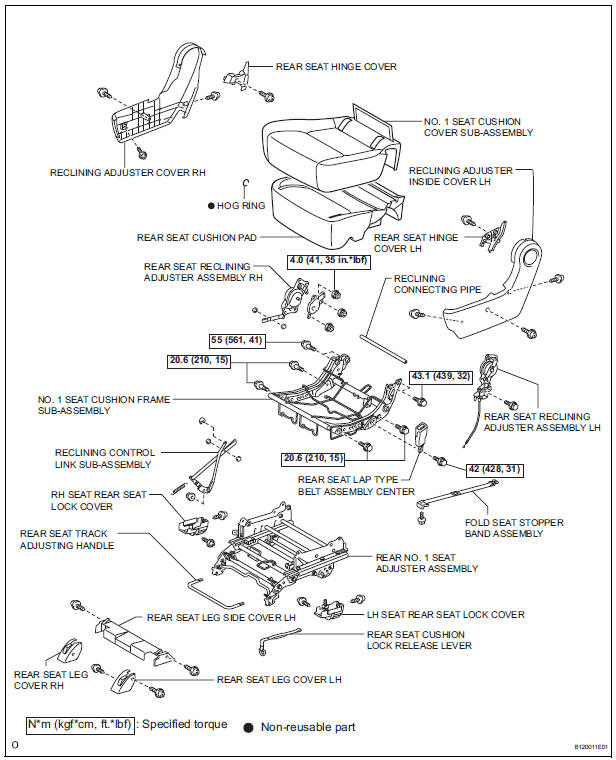

COMPONENTS

REMOVAL

1. REMOVE REAR NO. 1 SEAT ASSEMBLY CENTER

  1.  Remove the headrest.
  2.  Remove the bolt and seat belt anchor plate.
  3.  Remove the rear seat.
Rear no. 1 Seat assembly (for Center Seat)
...

Disassembly
1. REMOVE REAR SEAT LEG COVER LH  Remove the 2 screws and seat leg cover. 2. REMOVE REAR SEAT LEG COVER RH  Remove the 2 screws and seat leg cover. 3. REMOVE REAR SEAT LEG SIDE ...
