Toyota Sienna Service Manual: Radiator

COMPONENTS

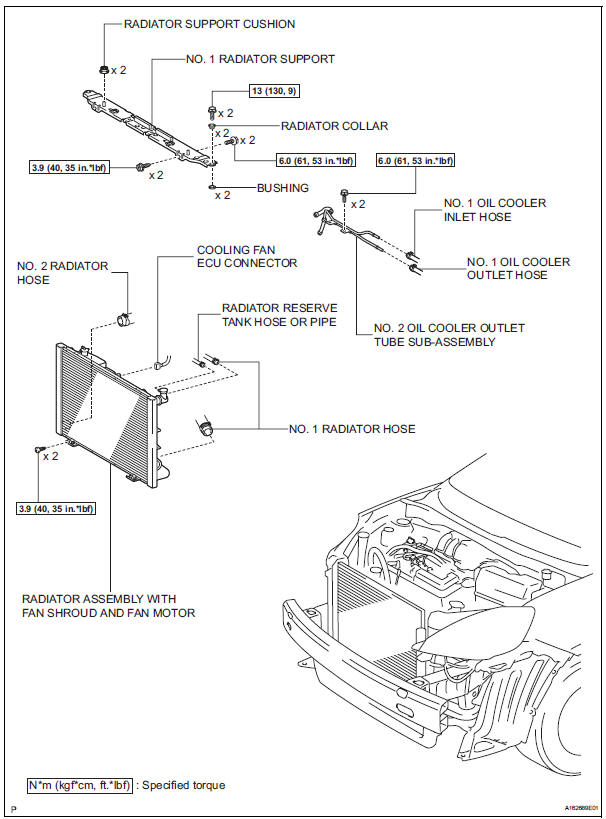

Radiator

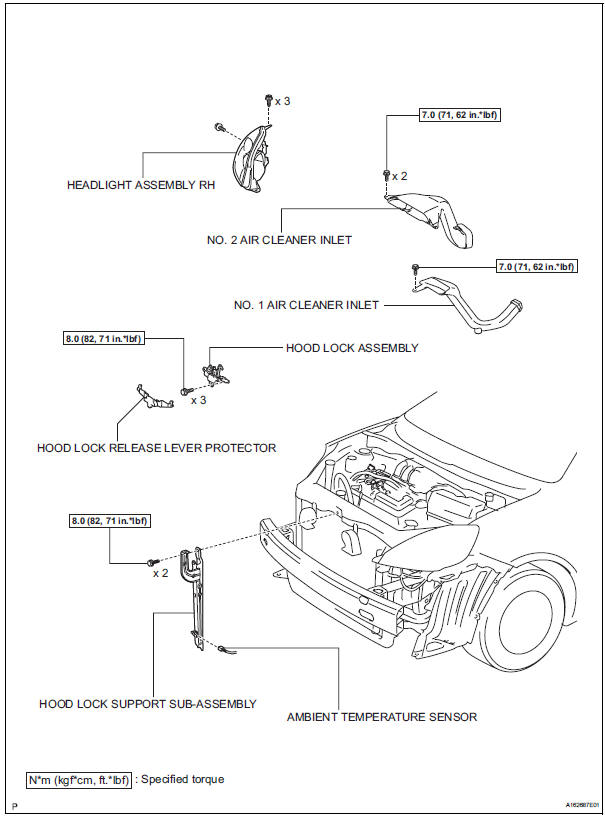

Radiator

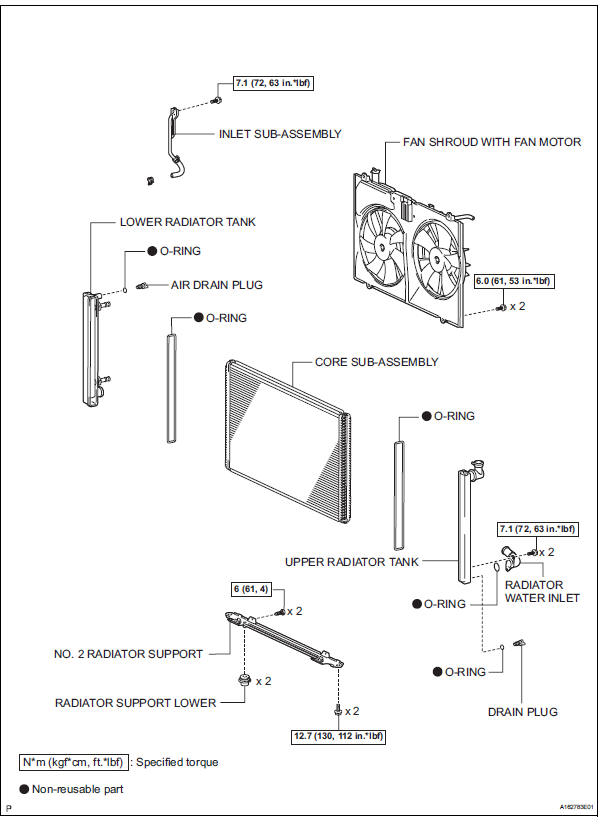

Radiator

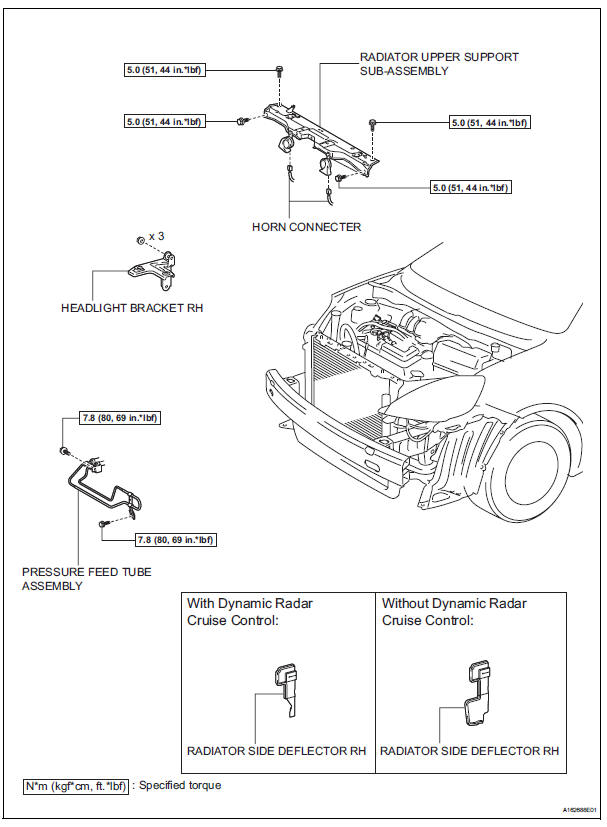

Radiator

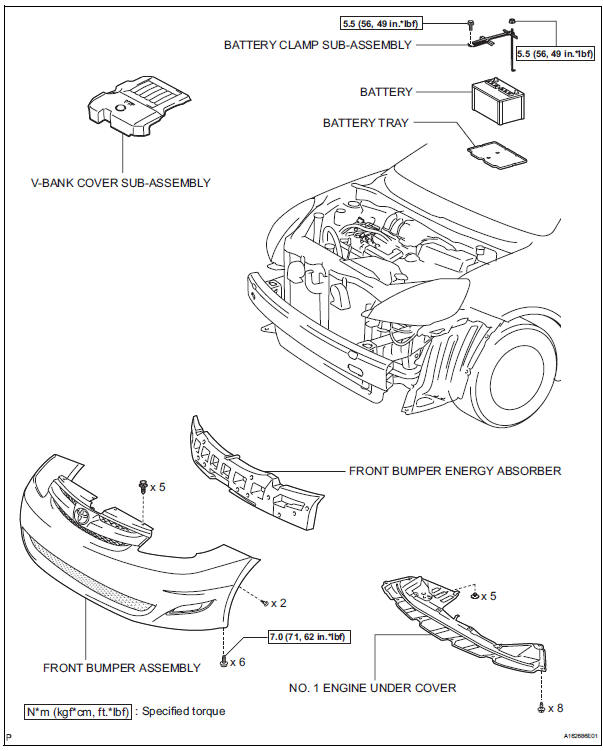

Radiator

Cooling fan relay
On-vehicle inspection 1. Cooling fan relay (a) Remove the relay from engine room relay block No. 1. (b) Measure the resistance of the relay. Standard resistance If the result is not as ...

On-vehicle inspection
1. CHECK RADIATOR RESERVOIR CAP SUBASSEMBLY a) Measure the valve opening pressure. (1) If there are water stains or foreign matter on rubber packings 1, 2 or 3, clean the part(s) with water ...
