Toyota Sienna Service Manual: Differential case

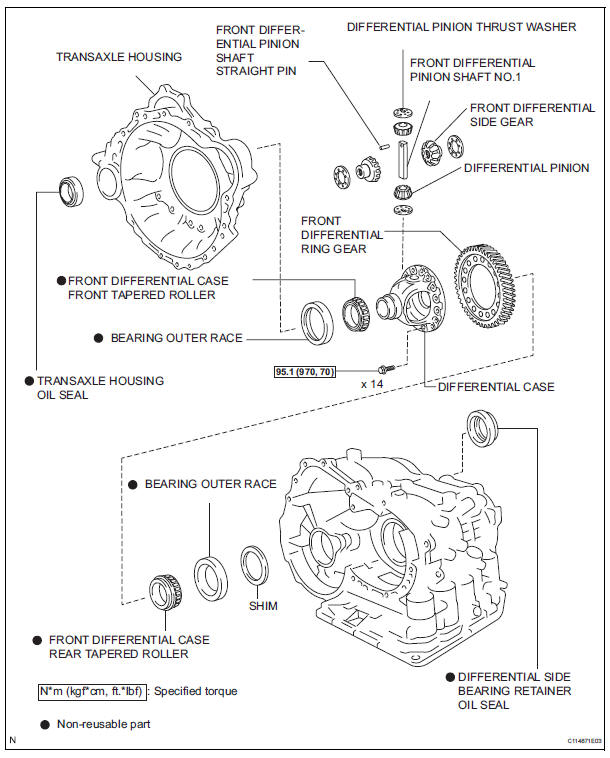

COMPONENTS

Differential case

Reassembly
1. INSTALL UNDERDRIVE CLUTCH DRUM O-RING (a) Coat a new O-ring with ATF, and install it to the underdrive clutch drum. NOTICE: Make sure that the O-ring is not twisted or pinched. 2. INSTALL ...

Disassembly
1. REMOVE FRONT DIFFERENTIAL RING GEAR (a) Place matchmarks on the front differential ring gear and differential case. (b) Remove the 14 bolts. (c) Using a plastic hammer, tap on the f ...
