Toyota Sienna Service Manual: Engine hood courtesy switch

Toyota Sienna Service Manual / Theft deterrent / Engine hood courtesy switch

Inspection

1. INSPECT ENGINE HOOD COURTESY SWITCH

INSPECT ENGINE HOOD COURTESY SWITCH

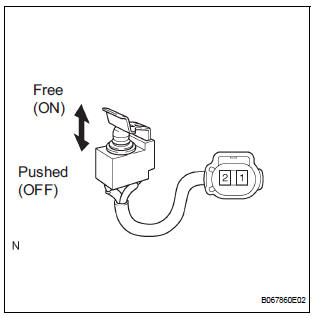

  1.  Measure the resistance according to the value(s) in the table below.

Standard resistance

Standard resistance

If the result is not as specified, replace the hood lock assembly.

ECU Power Source Circuit
DESCRIPTION This circuit provides power to operate the theft deterrent (warning) ECU. WIRING DIAGRAM INSPECTION PROCEDURE 1 INSPECT FUSE (ECU-B) Remove the ECU-B fuse from the engine room ...

Security horn assembly
INSPECTION 1. INSPECT SECURITY HORN ASSEMBLY  Check operation of the horn. Standard If the result is not a ...
