Toyota Sienna Service Manual: Extension housing oil seal

Toyota Sienna Service Manual / Transfer / Extension housing oil seal

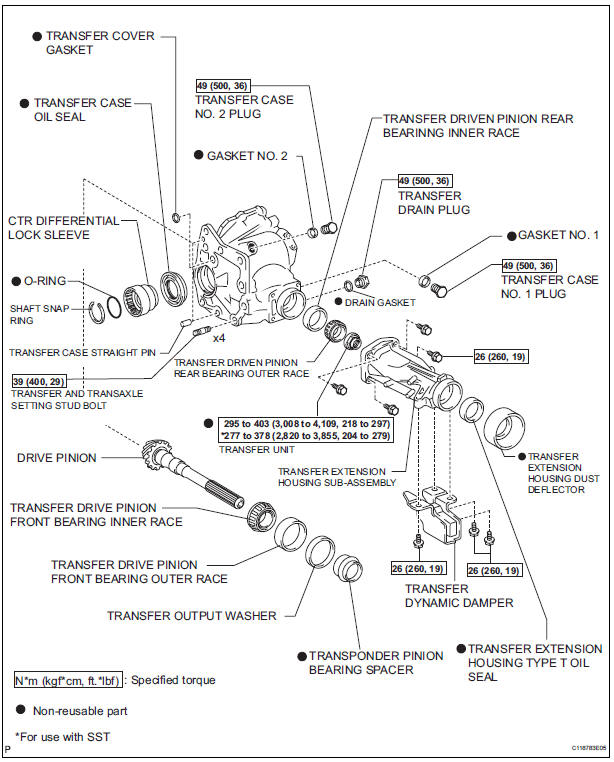

COMPONENTS

Extension housing oil seal

Installation
1. INSTALL TRANSFER CASE OIL SEAL (a) Using SST, install anew transfer case oil seal to the transfer case at the position shown in the illustration. SST 09387-00010, 09950-70010 (09951-07150) ...

Removal
1. REMOVE TRANSFER CASE NO.1 PLUG (See page TF-8) 2. REMOVE TRANSFER DRAIN PLUG (a) Remove the transfer drain plug, drain gasket and bleed transfer oil. 3. REMOVE EXHAUST PIPE ASSEMBLY HINT: (S ...
