Toyota Sienna Service Manual: Inspection

1. INSPECT SHOCK ABSORBER ASSEMBLY FRONT LH

INSPECT SHOCK ABSORBER ASSEMBLY FRONT LH

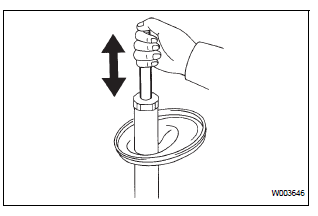

(a) Compress and extend the shock absorber rod and check that there is no unusual resistance or unusual sound during operation.

If there is any abnormality, replace the shock absorber assembly front LH with a new one.

NOTICE: When disposing of the shock absorber assembly front LH, see DISPOSAL (See page SP-18).

Disassembly
1. FIX FRONT SHOCK ABSORBER WITH COIL SPRING (a) Install 2 nuts and a bolt to the bracket at the lower side of the front shock absorber with coil spring and secure it in a vise. 2. REMOVE FRONT SU ...

Reassembly
1. INSTALL SHOCK ABSORBER ASSEMBLY FRONT LH 2. INSTALL FRONT COIL SPRING INSULATOR LOWER LH (a) Install the front coil spring insulator lower LH onto the shock absorber assembly front LH. 3. INST ...
