1. INSPECT AIR FUEL RATIO SENSOR

INSPECT AIR FUEL RATIO SENSOR

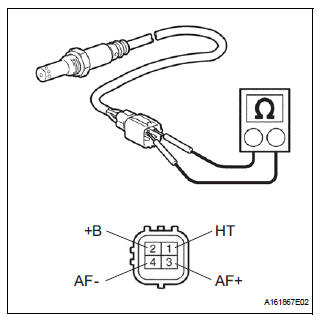

(a) Measure the resistance of the sensor.

Standard resistance

If the resistance is not as specified, replace the sensor.

Removal
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL 2. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1) (a) Disconnect the sensor connector. (b) Using SST, remove the sensor from the exhau ...

Installation
1. Install air fuel ratio sensor (for bank 2 sensor 1) (a) Using SST, install the sensor to the exhaust manifold LH. SST 09224-00010 Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf) for use with SST ...
