Toyota Sienna Service Manual: Inspection

1. Inspect water pump assembly

Inspect water pump assembly

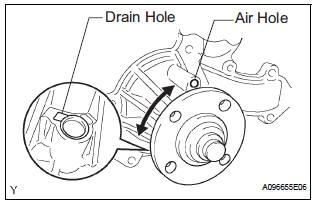

(a) Visually check the drain hole and air hole for coolant leakage.

(b) Turn the pulley, and check that the water pump bearing moves smoothly and noiselessly.

If the bearing does not move smoothly and noiselessly, replace the water pump.

Removal
1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE HINT: See page EM-26 2. SECURE ENGINE (See page EM-37) 3. REMOVE GENERATOR ASSEMBLY (See page CH-17) 4. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (See page A ...

Installation
1. INSTALL WATER PUMP ASSEMBLY (a) Install a new water pump gasket and the water pump assembly with the 16 bolts. Torque: Bolt A 21 N*m (214 kgf*cm, 15 ft.*lbf) Bolts B and C 9.1 N*m (93 kgf ...
