Toyota Sienna Service Manual: Installation

1. INSTALL REAR DIFFERENTIAL SIDE GEAR SHAFT BOLT

INSTALL REAR DIFFERENTIAL SIDE GEAR SHAFT BOLT

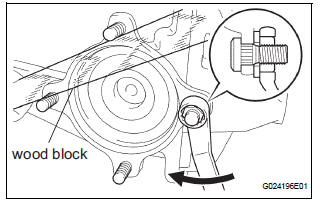

(a) Install the bolt tightening the nut through the plate washer.

2. INSTALL REAR DRIVE SHAFT ASSEMBLY LH

HINT: (See page DS-26)

3. INSTALL REAR AXLE SHAFT NUT LH

HINT: (See page DS-26)

4. INSTALL REAR SPEED SENSOR LH

HINT: (See page DS-26)

5. INSTALL EXHAUST PIPE ASSEMBLY

HINT: (See page EX-10)

6. INSTALL REAR WHEEL

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

7. INSPECT FOR EXHAUST GAS LEAK

8. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

HINT: (See page SP-4)

9. INSPECT ABS SPEED SENSOR SIGNAL

HINT: (See page BC-3)
