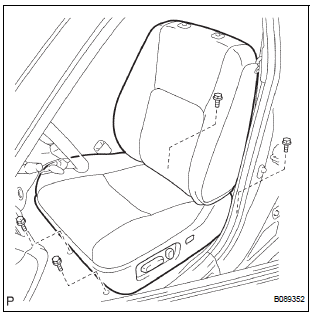

1. INSTALL FRONT SEAT ASSEMBLY LH

NOTICE: Be careful not to damage the body.
Torque: 37 N*m (375 kgf*cm, 27 ft.*lbf)
Torque: 37 N*m (375 kgf*cm, 27 ft.*lbf)
2. INSTALL FRONT SEAT HEADREST ASSEMBLY
3. CHECK SRS WARNING LIGHT
4. INSPECT POWER SEAT OPERATION
5. CHECK SEAT HEATER OPERATION
6. INITIALIZE OCCUPANT CLASSIFICATION SYSTEM
Reassembly
Rear no. 1 Seat assembly (for Captain Seat Type)Open or Short Circuit in ABS Solenoid Relay Circuit
DESCRIPTION
The ABS solenoid relay is built in the brake actuator assembly. This relay
supplies power to each ABS
solenoid. If the initial check is OK, after the ignition switch is turned to the
ON position, the relay goes on.
WIRING DIAGRAM
Refer to DTCs C0226/21, C0236/22, C0246/23 ...
No. 1 Ultrasonic sensor
COMPONENTS
REMOVAL
1. REMOVE FRONT FENDER LINER LH
2. REMOVE FRONT FENDER LINER RH
3. REMOVE FRONT BUMPER COVER
4. REMOVE REAR BUMPER COVER (2)
5. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER
Remove the No. 1 ultrasonic sensor retainer as
shown in the illustration
6. REMOVE ...
Installation
1. INSTALL REAR AXLE BEAM DAMPER
(a) Install the rear axle beam damper to the rear axle
beam assembly.
2. INSTALL REAR AXLE CARRIER BUSH LH
(a) Align the matchmarks on the axle beam assembly
with the 2 notches of a new bushing and temporarily
install the bushing to the rear axle beam assem ...
