Toyota Sienna Service Manual: Front seat assembly (for Power Seat)

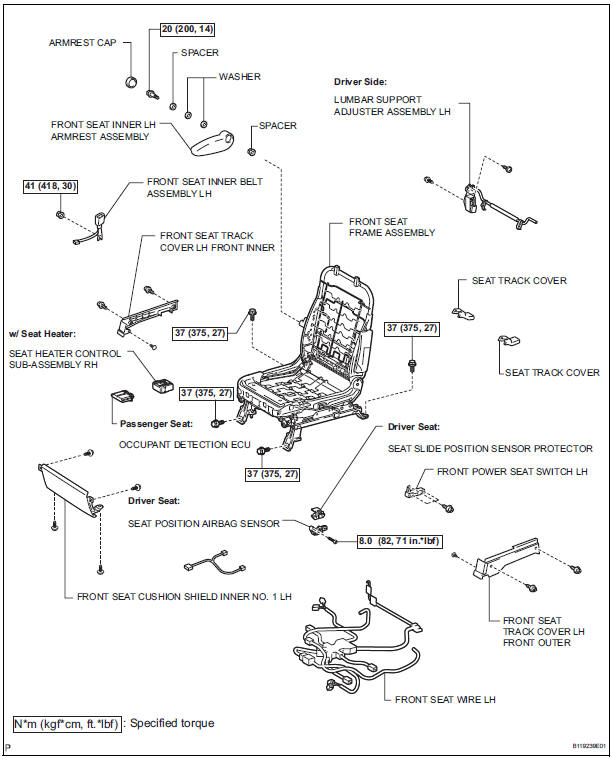

COMPONENTS
Installation
1. INSTALL FRONT SEAT ASSEMBLY LH
Place the seat assembly in the cabin.
NOTICE:
Be careful not to damage the body.
Connect the connectors under the seat assembly.
T ...
Removal
NOTICE:
Always wear safety gloves because the edges of the
seatback frame and seat adjuster are sharp and may
cause injury.
Work must be started more than 90 seconds after the
...
