Toyota Sienna Service Manual: Diagnostic trouble code chart
COMMUNICATION DIAGNOSIS:
SW:
SW WITH NAME:
SW CONVERTING:
COMMAND SW:
FRONT MONITOR:
DVD PLAYER:
TELEPHONE:
NAVI:
IN-DASH CD CHANGER:
GPS:
CAMERA UNIT:

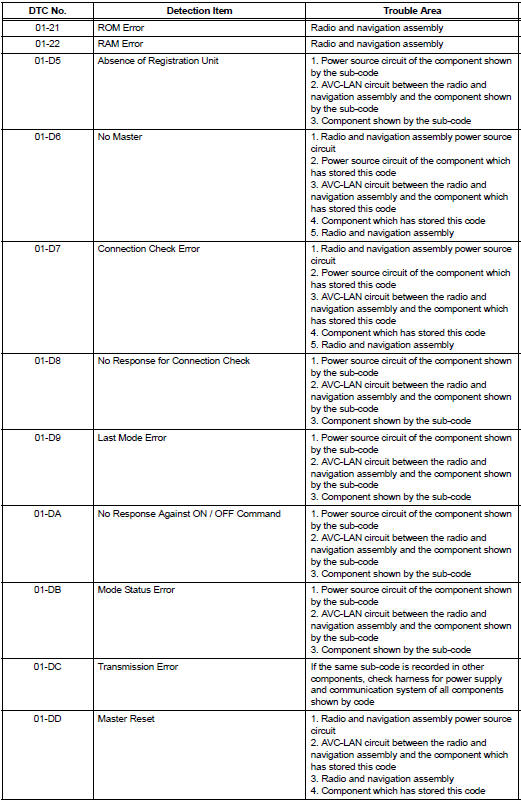

- ROM Error/ RAM Error
- Absence of Registration Unit/ No Response for Connection Check/ Last Mode Error/ No Response Against ON / OFF Command/ Mode Status Error/ Slave Reset
- No Master/ Connection Check Error
- Transmission Error

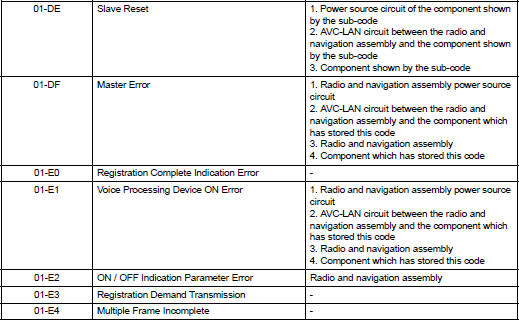

- Master Reset/ Voice Processing Device ON Error
- Master Error
- Registration Complete Indication Error/ Registration Demand Transmission/ Multiple Frame Incomplete
- ON / OFF Indication Parameter Error
- Panel Switch Error/ Touch Switch Error
- Error in Picture Circuit/ No Current in Back-light/ Excess Current in Back-light

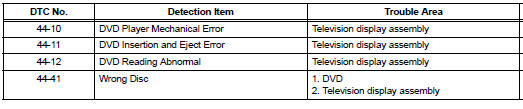

- DVD Player Mechanical Error/ DVD Insertion and Ejection Error/ DVD Reading Abnormal
- Wrong Disc/ Disc cannot be Read
- DVD-ROM Abnormal

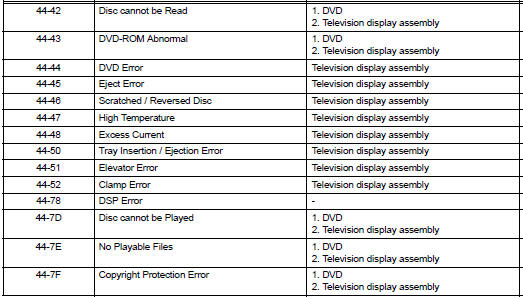

- DVD Error/ Excess Current/ Tray Insertion / Ejection Error
- Eject Error/ Elevator Error/ Clamp Error
- Scratched / Reversed Disc
- High Temperature
- DSP Error
- Disc cannot be Played/ No Playable Files/ Copyright Protection Error
- Bluetooth Module Initialization Failed

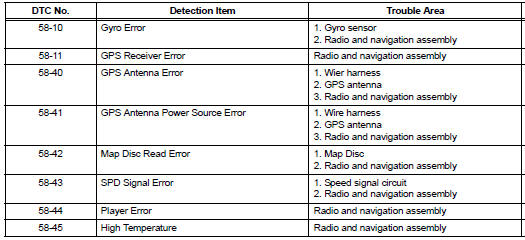

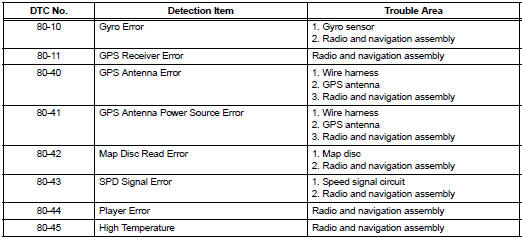

- Gyro Error
- GPS Receiver Error
- GPS Antenna Error/ GPS Antenna Power Source Error
- Map Disc Read Error
- SPD Signal Error
- Player Error
- High Temperature
- Camera Picture Error

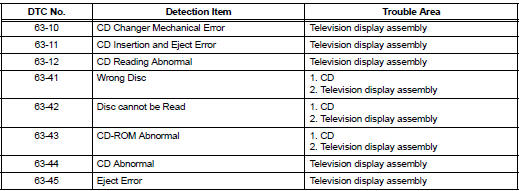

- CD Changer Mechanical Error/ CD Insertion and Ejection Error/ CD Reading Abnormal
- Wrong Disc/ Disc cannot be Read
- CD-ROM Abnormal

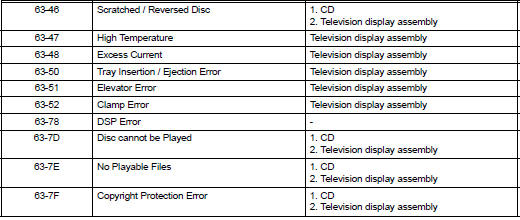

- CD Abnormal/ Excess Current/ Tray Insertion / Ejection Error
- Eject Error/ Elevator Error/ Clamp Error
- Scratched / Reversed Disc
- High Temperature
- DSP Error
- Disc cannot be Played/ No Playable Files/ Copyright Protection Error
- Noise Occurs
- Pressing Power Switch does not Turn on System
- No Sound can be Heard from Speakers
- CD cannot be Ejected
- CD cannot be Inserted / Played or CD is Ejected Right After Insertion
- CD Sound Skips
- Radio Broadcast cannot be Received or Poor Reception
- Illumination for Panel Switch does not Come on with Tail Switch ON
- Display does not Dim when Light Control Switch is Turned ON
- Panel Switches do not Function
- Touch Panel Switch does not Function
- Display Panel does not Open, Tilt or Tilts Improperly
- Screen Flicker or Color Distortion
- Poor Sound Quality in All Modes (Low Volume)
- Map Disc cannot be Inserted
- Vehicle Position Mark Deviates Greatly
- Cursor or Map Rotates when Vehicle Stopped
- Vehicle Position Mark is not Updated
- Current Position Display does not Appear
- GPS Mark is not Displayed
- Voice Guidance does not Function
- Map Display Incomplete
- Route cannot be Calculated
- Voice Recognition Difficulty
- Voice is not Recognized
- Cellular Phone Registration Failure, Phone Directory Transfer Failure
- Cellular Phone cannot Send / Receive
- Cannot Call in a Certain Place
- The Other Caller's Voice cannot be Heard, is too Quiet, or Distorted
- The Other Caller cannot Hear Your Voice, or Your Voice is too Quiet or Distorted
- Black Screen
- Vehicle Speed Signal Circuit between Radio and Navigation Assembly and Combination Meter
- Steering Pad Switch Circuit
- Illumination Circuit
- Parking Brake Switch Circuit
- Speaker Circuit
- Sound Signal Circuit between Radio and Navigation Assembly and Television Display Assembly
- Sound Signal Circuit between Radio and Navigation Assembly and Stereo Component Amplifier
- Sound Signal Circuit between Radio and Navigation Assembly and Stereo Jack Adapter
- Mute Signal Circuit between Radio and Navigation Assembly and Television Display Assembly
- Mute Signal Circuit between Radio and Navigation Assembly and Stereo Component Amplifier
- AVC-LAN Circuit
- Reverse Signal Circuit
- Navigation Voice Circuit
- Display Signal Circuit between Television Display Assembly and Radio and Navigation Assembly
- Microphone Circuit between Microphone and Radio and Navigation Assembly
- Stereo Component Amplifier Communication Error
- Radio and Navigation Assembly Communication Error
- Television Display Assembly Communication Error
- Stereo Component Amplifier Power Source Circuit
- Radio and Navigation Assembly Power Source Circuit
- Television Display Power Source Circuit
DTC check / clear
HINT:
Illustrations may differ from the actual vehicle depending
on the device settings and options. Therefore, some
detailed areas may not be shown exactly the same as on
the actual v ...
ROM Error/ RAM Error
DTC 01-21 ROM Error
DTC 01-22 RAM Error
DESCRIPTION
INSPECTION PROCEDURE
HINT:
After the inspection is completed, clear the DTCs.
1 REPLACE RADIO AND NAVIGATION ASSEMBLY
END ...
