Toyota Sienna Service Manual: Installation

1. Install vacuum switching valve assembly

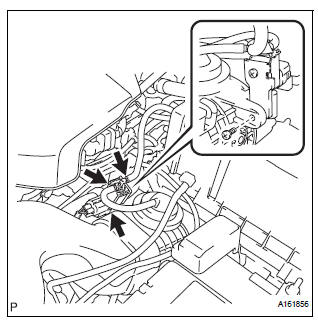

Install vacuum switching valve assembly

(a) Install the vacuum switching valve with the screw.

(b) Install the 2 vacuum hoses and vacuum switching valve connector.

Inspection
1. V (a) Inspect VSV operation. (1) Using an ohmmeter, measure the resistance according to the value(s) in the table below.V Standard resistance If the result is not as specified, replace t ...
