Toyota Sienna Service Manual: Low pitched horn

Toyota Sienna Service Manual / Horn / Low pitched horn

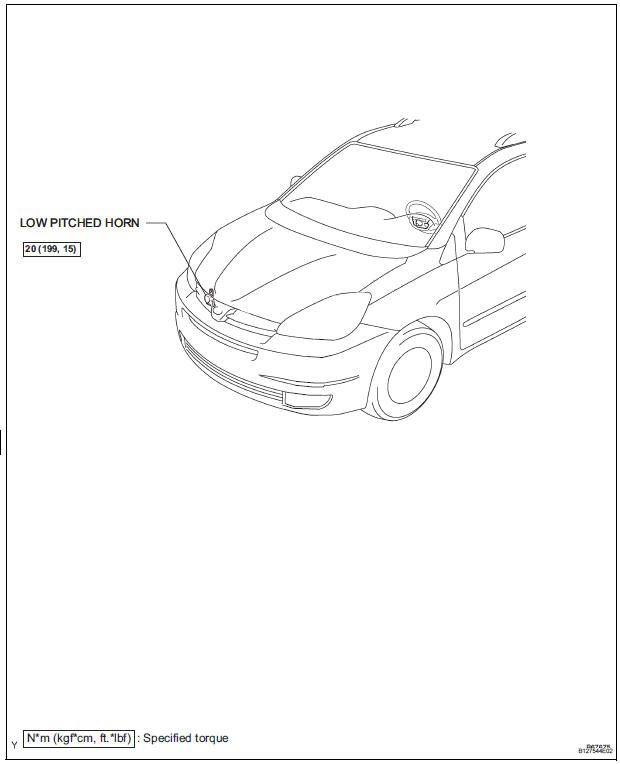

COMPONENTS

COMPONENTS

REMOVAL

1. REMOVE FRONT BUMPER COVER ET-3

2. REMOVE LOW PITCHED HORN

  1.  Disconnect the connector.
  2.  Remove the bolt and horn.

INSPECTION

1. INSPECT LOW PITCHED HORN

INSPECT LOW PITCHED HORN

  1.  Apply battery voltage and check operation of the horn, as shown in the table.

Standard

Standard

INSTALLATION

1. INSTALL LOW PITCHED HORN

INSTALL LOW PITCHED HORN

  1.  Place the stay onto the baffle part of the radiator support upper and then install the horn with the bolt.

    Torque: 20 N*m (199 kgf*cm, 15 ft.*lbf)

  2.  Connect the connector.

2. INSTALL FRONT BUMPER COVER
