Toyota Sienna Service Manual: Magnetic clutch relay

ON-VEHICLE INSPECTION

1. INSPECT MAGNETIC CLUTCH RELAY

Magnetic clutch relay

(a) Remove the magnetic clutch relay.

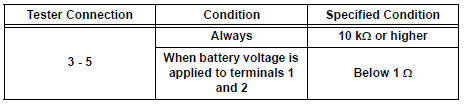

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance

If the resistance is not as specified, replace the magnetic clutch relay.
