Toyota Sienna Service Manual: Disassembly

1. REMOVE OIL PUMP RELIEF VALVE

REMOVE OIL PUMP RELIEF VALVE

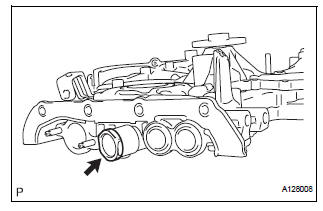

(A) using a 27 mm socket wrench, remove the relief valve plug.

(B) remove the valve spring and oil pump relief valve.

2. REMOVE OIL PUMP COVER

REMOVE OIL PUMP COVER

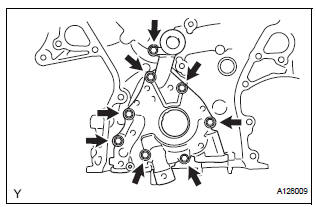

(a) Remove the 8 bolts, oil pump cover and oil pump rotor set.

Removal
1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE HINT: See page EM-26 2. REMOVE OIL LEVEL GAUGE GUIDE SUBASSEMBLY (See page EM-39) 3. REMOVE NO. 1 OIL PIPE (See page EM-77) 4. REMOVE OIL PIPE (See page ...

Inspection
1. INSPECT OIL PUMP RELIEF VALVE (a) Coat the relief valve with engine oil and check that it falls smoothly into the valve hole under its own weight. If the valve does not fall smoothly, rep ...

Other materials:

Room temperature sensor (for rear air conditioning system)
ON-VEHICLE INSPECTION 1. INSPECT REAR A/C ROOM TEMPERATURE SENSOR (a) Remove the rear A/C room temperature sensor. (b) Disconnect the connector from the rear A/C room temperature sensor. (c) Measure the resistance according to the value(s) in the table below. Standard resistance NOTI ...

Transmission Range Sensor Circuit Malfunction (PRNDL Input)
DESCRIPTION The park/neutral position switch detects the shift lever position and sends signals to the ECM. HINT: After confirming DTC P0705, use the intelligent tester to confirm the PNP switch signal in the ALL menu (to reach the ALL menu: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ...

Back Door Courtesy Switch Circuit
DESCRIPTION The fold seat control ECU receives signals from the back door courtesy switch and detects the state of the back door (open/close). If the ECU does not detect that the back door is open, the seat stowing and return functions are not available. WIRING DIAGRAM INSPECTION PROCED ...
