Toyota Sienna Service Manual: On-vehicle Inspection

1. CHECK STEERING WHEEL FREEPLAY

CHECK STEERING WHEEL FREEPLAY

(a) Stop the vehicle and face the tires straight ahead.

(b) Rock the steering wheel gently up and down with your hand, check the steering wheel freeplay.

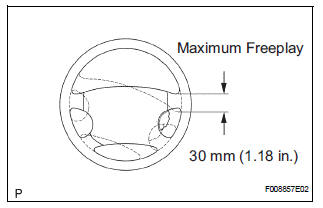

Maximum freeplay: 30 mm (1.18 in.)

Problem Symptoms Table
HINT: Use the table below to help determine the cause of the problem. Likely causes of the problem are indicated in descending order. Check each suspected area in order. Repair or replace the fa ...

Repair
1. STEERING OFF CENTER REPAIR PROCEDURE (a) Inspect steering wheel off center. (1) Apply masking tape to the top center of the steering wheel and steering column upper cover. (2) Drive th ...
