INSPECTION
1. INSPECT POWER SLIDE DOOR WARNING BUZZER LH

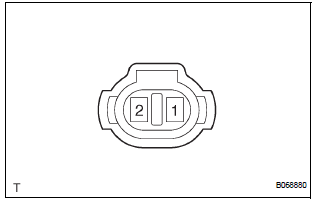

- Check the resistance of the buzzer.
Resistance
If the result is not as specified, replace the buzzer.
NOTICE:
- The circuit that causes the buzzer to sound is built into the slide door ECU, not around the buzzer.
- Directly applying battery voltage to the buzzer does not cause the buzzer to sound.
2. INSPECT POWER SLIDE DOOR WARNING BUZZER RH

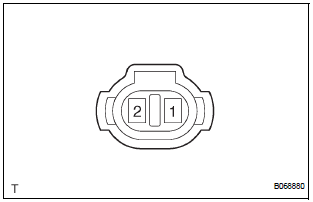

- Check the resistance of the buzzer.
Resistance
NOTICE:
- The circuit that causes the buzzer to sound is built into the slide door ECU, not around the buzzer.
- Directly applying battery voltage to the buzzer does not cause the buzzer to sound.
If the result is not as specified, replace the buzzer.
Slide door half open stopper control assembly
INSPECTION
1. INSPECT SLIDE DOOR HALF OPEN STOPPER CONTROL ASSEMBLY
Inspect the resistance of the switch.
Resistance
If the result is not as specified, replace the control
sub-assembly ...
Back door
COMPONENTS
...
