Toyota Sienna Service Manual: Back door

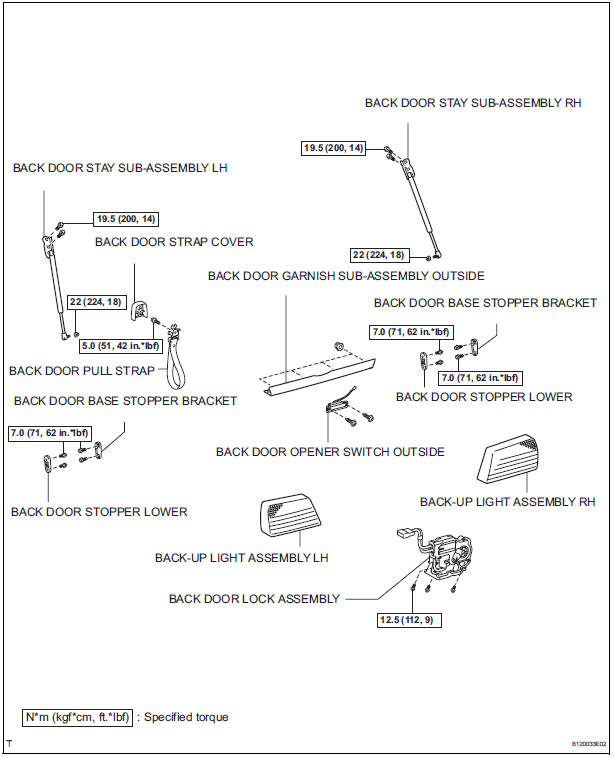

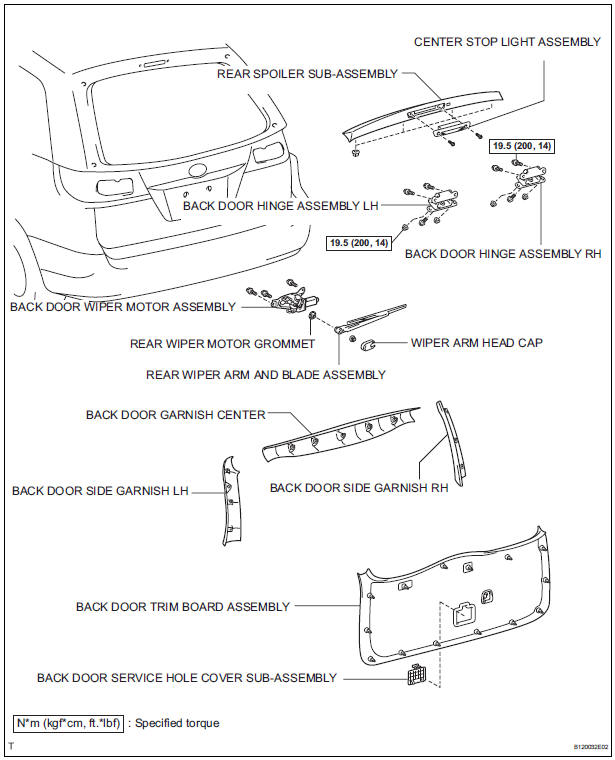

COMPONENTS

COMPONENTS

COMPONENTS

Power slide door warning buzzer
INSPECTION 1. INSPECT POWER SLIDE DOOR WARNING BUZZER LH Check the resistance of the buzzer. Resistance If the result is not as specified, replace the buzzer. NOTICE: The circuit t ...

Disassembly
1. REMOVE BACK DOOR GARNISH CENTER Using a clip remover, disengage the 5 clips and remove the garnish center. 2. REMOVE BACK DOOR SIDE GARNISH LH Using a clip remover, disengage the 3 ...

Other materials:

Driving Position Memory Switch Circuit (w/ Memory)
DESCRIPTION The seat memory switch sends signals to the outer mirror control ECU LH via the multiplex communication system to memorize a given seat position. This memory system does not use a position sensor. The seat position is detected by counting pulses that are output when the motor tu ...

Data list / active test
1. DATA LIST HINT: Using the intelligent tester to read the DATA LIST allows the values or states of switches, sensor, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered ...

Entire Combination Meter does not Operate
DESCRIPTION This is the power source circuit to operate the combination meter assembly. WIRING DIAGRAM INSPECTION PROCEDURE 1 INSPECT COMBINATION METER ASSEMBLY Disconnect the C10 connector. Measure the resistance according to the value(s) in the table below. Standard resistan ...
