Toyota Sienna Service Manual: SFR Solenoid Circuit

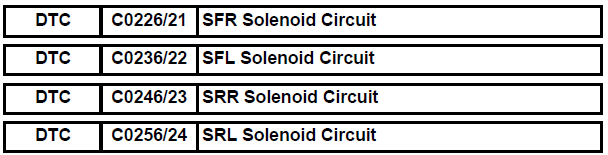

SFR Solenoid Circuit

DESCRIPTION

This solenoid goes on when signals are received from the ECU and controls the pressure acting on the wheel cylinders to control the braking force.

SFR Solenoid Circuit

WIRING DIAGRAM

WIRING DIAGRAM

INSPECTION PROCEDURE

1 RECONFIRM DTC

HINT: This code is detected when a problem is determined in the brake actuator assembly.

The solenoid circuit is in the brake actuator assembly.

Therefore, solenoid circuit inspection and solenoid unit inspection cannot be performed. Be sure to check if the DTC code is output before replacing the brake actuator assembly.

(a) Clear the DTCs (See page BC-82).

(b) Turn the ignition switch to the ON position.

(c) Are the same DTCs recorded?

Result

NOTICE: When replacing the brake actuator assembly, perform zero point calibration (See page BC-70).

REPLACE BRAKE ACTUATOR ASSEMBLY
