Toyota Sienna Service Manual: Precaution

1. PRECAUTION FOR VEHICLE WITH SRS AIRBAG AND SEAT BELT PRETENSIONER

  1. Some operations in this section may affect SRS airbag system. Before performing the corresponding operations, please read the NOTICE of the SRS airbag for the proper operations.

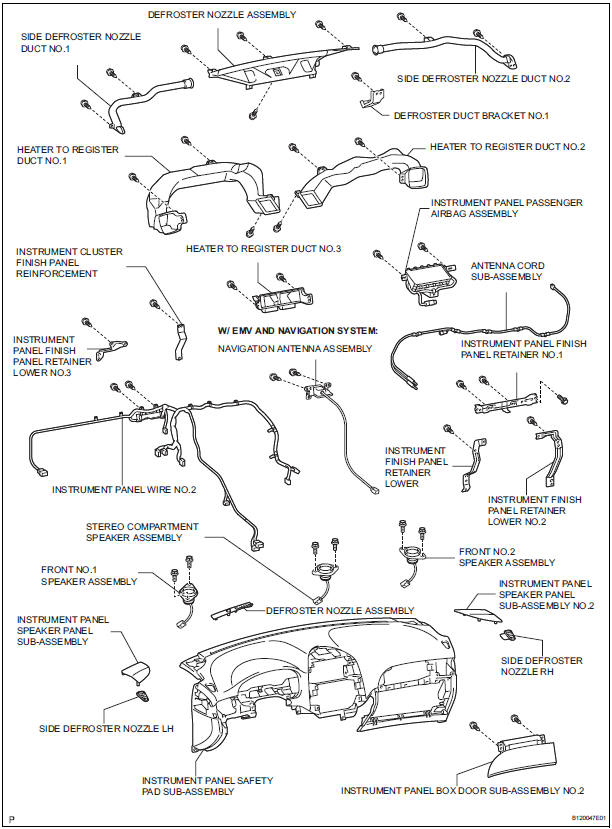

COMPONENTS

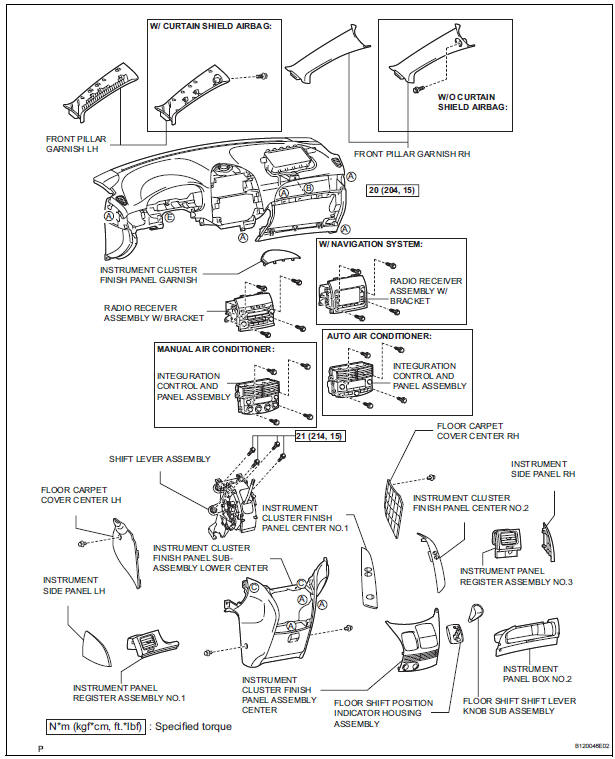

COMPONENTS

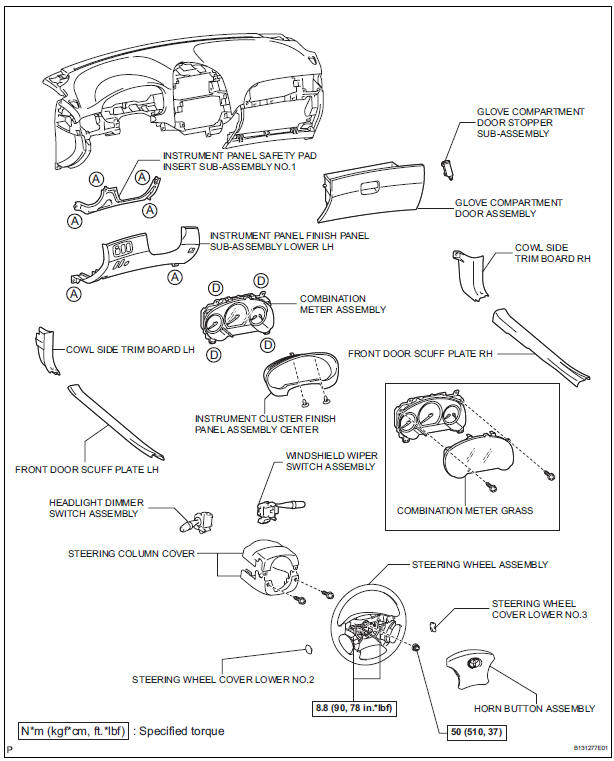

COMPONENTS

COMPONENTS

Instrument panel
...

Removal
1. BOLT, SCREW AND NUT TABLE  The bolts, the screws and the nuts, which are necessary for installation and removal of the instrument panel are shown in the illustration below with alpha ...
