Toyota Sienna Service Manual: Radio antenna pole

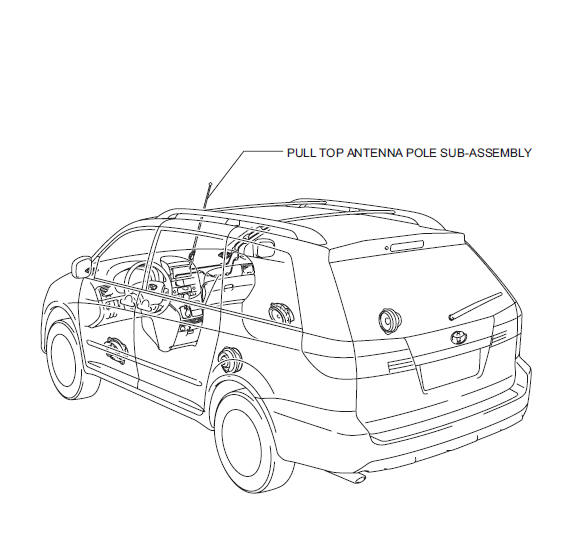

COMPONENTS

COMPONENTS

REMOVAL

1. REMOVE PULL TOP ANTENNA POLE SUBASSEMBLY

REMOVE PULL TOP ANTENNA POLE SUBASSEMBLY

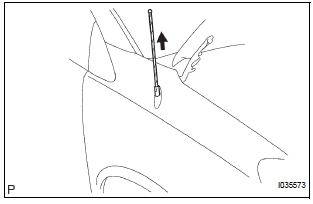

  1.  Remove the pull top antenna pole sub-assembly by pulling it the arrow direction in the illustration.

INSTALLATION

1. INSTALL PULL TOP ANTENNA POLE SUBASSEMBLY

Installation
1. INSTALL AMPLIFIER ANTENNA ASSEMBLY  Engage the 16 clamps to install the amplifier antenna assembly.  Install the 3 bolts. Connect the connectors. 2. INSTALL ROOF HEAD ...
