Toyota Sienna Service Manual: Rear differential carrier oil seal

Toyota Sienna Service Manual / Differential / Rear differential carrier oil seal

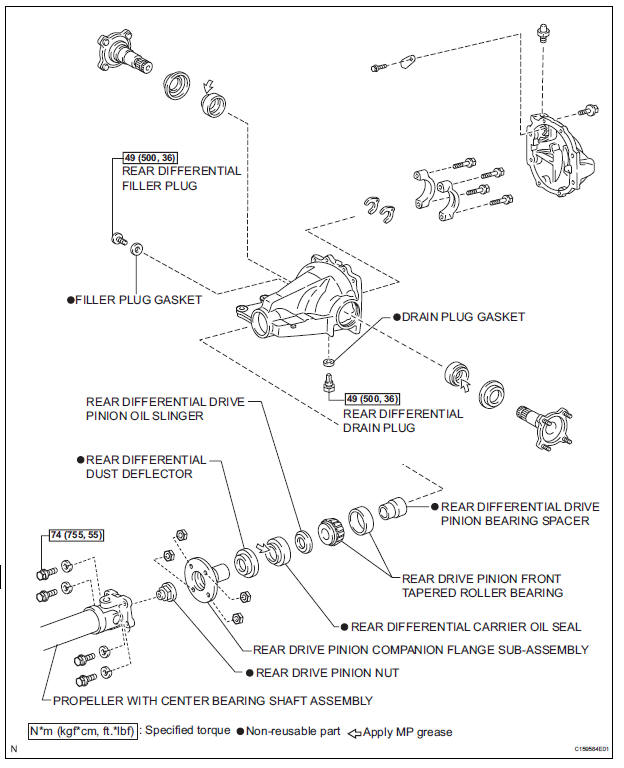

COMPONENTS

Rear differential carrier oil seal

Differential oil
Adjustment 1. INSPECT DIFFERENTIAL OIL (a) Stop the vehicle on the level place. (b) Remove the differential filler plug and gasket. (c) Check that the oil surface is within 5 mm (0.20 in.) ...

Removal
1. REMOVE FRONT EXHAUST PIPE ASSEMBLY HINT: (See page EX-8) 2. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY HINT: (See page PR-3) 3. REMOVE REAR DIFFERENTIAL FILLER PLUG (a) Using a hex ...
