Toyota Sienna Service Manual: Reassembly

1. INSTALL COOLER DRYER

INSTALL COOLER DRYER

(a) Using needle nose pliers, install the cooler dryer.

INSTALL COOLER DRYER

(b) Install a new O-ring on the cap.

(c) Sufficiently apply compressor oil to the fitting surfaces of the O-ring and the cap.

Compressor oil: ND-OIL 8 or equivalent

 INSTALL COOLER DRYER

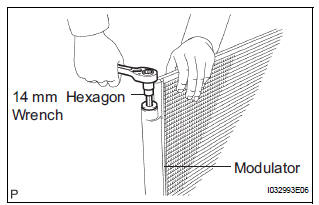

(d) Using a hexagon wrench 14 mm (0.55 in.), install the cap to the cooler condenser assembly.

Torque: 2.9 N*m (30 kgf*cm, 25 in.*lbf)

Disassembly
1. REMOVE COOLER DRYER (a) Using a hexagon wrench 14 mm (0.55 in.), remove the cap from the modulator. (b) Remove the O-ring from the cap. (c) Using needle nose pliers, remove the cool ...

Installation
1. INSTALL COOLER CONDENSER CORE (a) Install the cooler condenser core with the 2 screws. Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf) HINT: If the condenser is replaced with a new one, add compress ...
