Toyota Sienna Service Manual: Reassembly

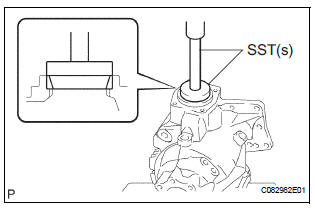

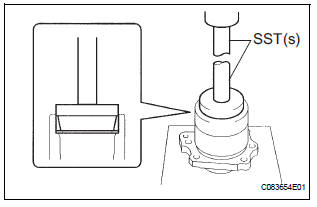

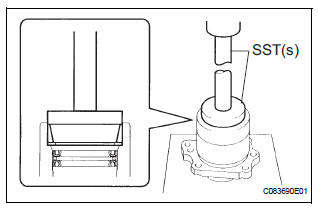

1. INSTALL TRANSFER DRIVEN PINION REAR BEARING

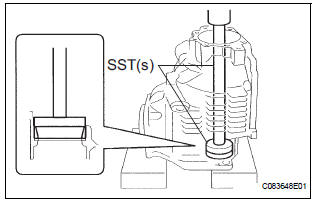

(a) Using SST(s) and a press, install the transfer driven pinion rear bearing outer race to the transfer case.

SST 09950-60010 (09951-00620), 09950-70010 (09951-07150)

INSTALL TRANSFER DRIVEN PINION REAR BEARING

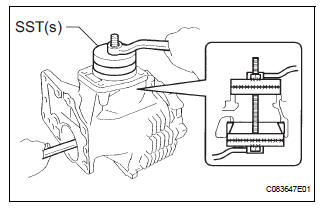

NOTICE: Place something like wood blocks under the case to keep its level.

2. INSTALL TRANSFER OUTPUT WASHER

(a) Install the transfer output washer to the transfer case.

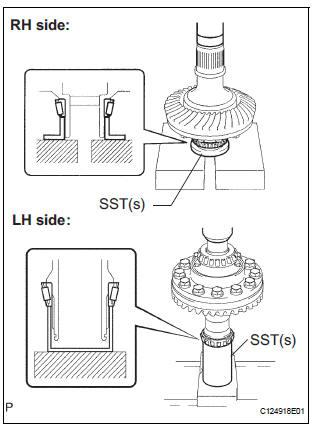

HINT: Reuse the washer.

3. INSTALL TRANSFER DRIVEN PINION FRONT BEARING

 INSTALL TRANSFER DRIVEN PINION FRONT BEARING

(a) Install the transfer driven pinion front bearing outer race to the transfer case with SST(s), bolt and nut.

SST 09950-60020 (09951-00750, 09951-00770, 09951-00810), 09316-60011 (09316-00061)

4. INSTALL RING GEAR MOUNTING CASE PLATE WASHER

(a) Install the ring gear mounting case plate washer to the transfer case.

HINT: Reuse the washer.

5. INSTALL CENTER DIFFERENTIAL CASE TAPERED ROLLER BEARING

 INSTALL CENTER DIFFERENTIAL CASE TAPERED ROLLER BEARING

(a) Using SST(s) and a press, install the center differential case tapered roller bearing LH outer race to the transfer case.

SST 09950-70010 (09951-07200), 09316-60011 (09316-00021)

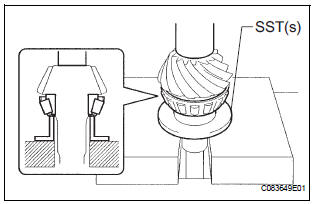

6. INSTALL TRANSFER DRIVEN PINION FRONT BEARING

INSTALL TRANSFER DRIVEN PINION FRONT BEARING

(a) Using SST(s) and a press, install the transfer driven pinion front bearing inner race to the driven pinion.

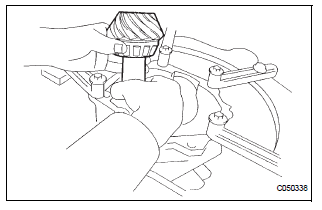

7. INSTALL DRIVEN PINION

INSTALL DRIVEN PINION

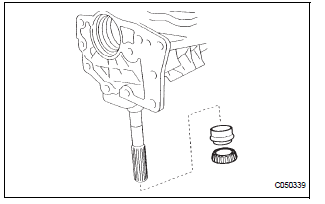

(a) Install the driven pinion to the transfer case.

INSTALL DRIVEN PINION

(b) Install a new transfer pinion bearing spacer and anew transfer driven pinion rear bearing inner race to the driven pinion.

INSTALL DRIVEN PINION

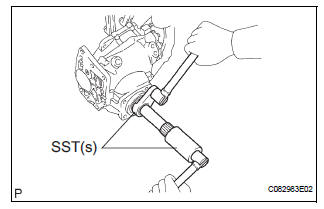

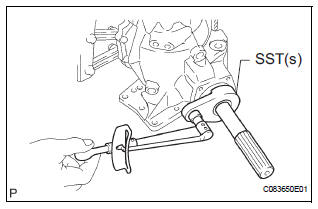

(c) Using SST(s), tighten a new transfer gear nut (at a standard torque.)

SST 09326-20011, 09556-16030 Torque: 277 to 378 N*m (2,820 to 3,855 kgf*cm, 204 to 279 ft.*lbf)

NOTICE: Do not stake the transfer gear nut.

HINT: Use a torque wrench with a fulcrum length of 750 mm (29.53 in.)

8. INSPECT AND ADJUST DRIVEN PINION PRELOAD

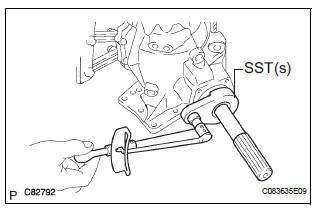

(a) Using SST(s) and a torque wrench, measure thee initial torque of the driven pinion.

INSPECT AND ADJUST DRIVEN PINION PRELOAD

SST 09326-20011, 09556-16030

Torque: New bearing 1.1 to 1.6 N*m (10 to 16 kgf*cm, 9.7 to 14.2 in.*lbf) Used bearing 0.9 to 1.4 N*m (9 to 14 kgf*cm, 8.0 to 12.4 in.*lbf)

HINT: Use a torque wrench with a fulcrum length of 160 mm (6.30in.)

NOTICE: Measure preload after rotating the bearing both clockwise and counterclockwise to make it fit.

(b) If the preload is too large, replace the transfer pinion bearing spacer with a new one.

(c) If the preload is too small, repeatedly adjust the preload by tightening the transfer gear nut 5 to 10 degrees at a time until the standard value is obtained.

(d) If the preload is insufficient, even though the tightening torque of the transfer gear nut exceeds the maximum of the standard value., loosen the transfer gear nut and apply gear oil SAE 90 (GL-5) to the transfer gear nut and the screw thread and the base of driven pinion. And then repeat the preceding operation . If the tightening torque is bearing spacer with anew one and adjust it.

Torque: 378 N*m (3.855 kgf*cm, 279 ft.*lbf)

9. INSTALL RING GEAR

INSTALL RING GEAR

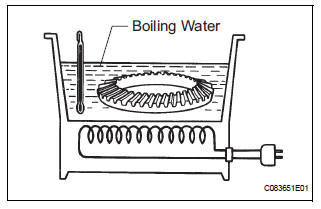

(a) Heat the ring gear in boiling water from 90 to 100 °C (194 to 212 °F).

(b) Completely remove grease and moisture on the contact surfaces of the ring gear and the transfer ring gear mounting case.

 INSTALL RING GEAR

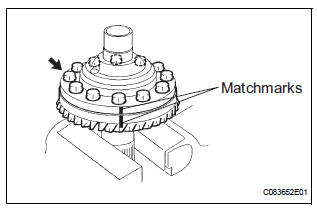

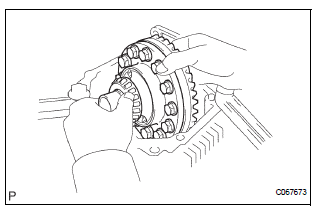

(c) Align the matchmarks on the ring gear and transfer ring gear mounting case and quickly assemble them.

(d) Tighten the 12 bolts.

Torque: 78 N*m (790 kgf*cm, 57 ft.*lbf)

NOTICE:

10. INSTALL CENTER DIFFERENTIAL CASE TAPERED ROLLER BEARING

(a) Using SST(s) and a press, install the inner race of the center differential case tapered roller bearing to the transfer ring gear mounting case.

 INSTALL CENTER DIFFERENTIAL CASE TAPERED ROLLER BEARING

SST 09506-35010, 09950-60010 (09951-00430), 09223-00010

NOTICE: When replacing the inner race, replace it together with the outer race.

11. INSTALL TRANSFER RING GEAR MOUNTING CASE

 INSTALL TRANSFER RING GEAR MOUNTING CASE

(a) Install the transfer ring gear mounting case to the transfer case.

NOTICE: Damage to the spline, the bearing's rotating surface and gear face may cause a decrease in their strength. Care should be taken when installing them.

12. INSTALL NO. 2 TRANSFER RING GEAR MOUNTING CASE WASHER

(a) Install the No. 2 transfer ring gear mounting case washer to the transfer RH bearing retainer subassembly.

HINT: Reuse the washer.

13. INSTALL CENTER DIFFERENTIAL CASE TAPERED ROLLER BEARING

 INSTALL CENTER DIFFERENTIAL CASE TAPERED ROLLER BEARING

(a) Using SST(s) and a press, install the center differential case tapered roller bearing RH outer race to the transfer RH bearing retainer subassembly.

SST 09950-60010 (09951-00620), 09950-70010 (09951-07150)

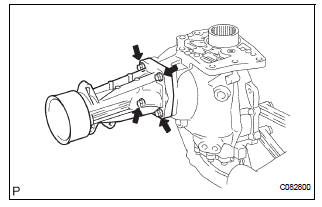

14. INSTALL TRANSFER RH BEARING RETAINER SUBASSEMBLY

INSTALL TRANSFER RH BEARING RETAINER SUBASSEMBLY

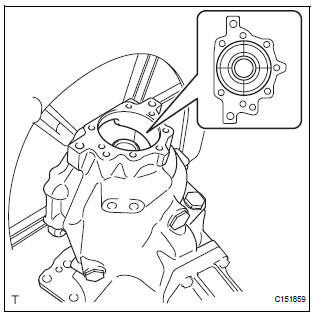

(a) Place the transfer with the surface where the transfer RH bearing retainer sub-assembly is facing up.

(b) Align the centers of the transfer ring gear mounting case and the transfer case.

INSTALL TRANSFER RH BEARING RETAINER SUBASSEMBLY

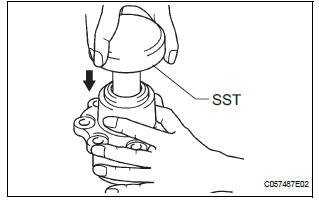

(c) Insert SST into the transfer RH bearing retainer subassembly.

SST 09387-00090

INSTALL TRANSFER RH BEARING RETAINER SUBASSEMBLY

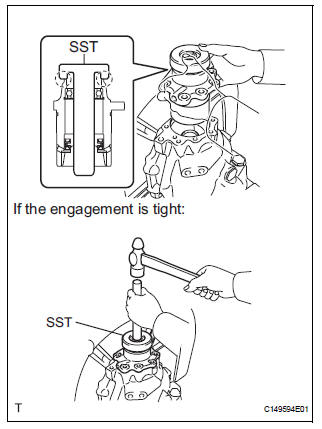

(d) With SST and the transfer RH bearing subassembly in close contact, install the transfer RH bearing retainer sub-assembly together with SST into the transfer case.

NOTICE: Avoid interference between the case and the retainer, and between the SST and the transfer ring gear mounting case.

HINT: If the engagement is tight, tap SST with a hammer placing a brass bar on the center of SST.

(e) Make sure that the transfer RH bearing retainer subassembly and transfer case contact closely.

INSTALL TRANSFER RH BEARING RETAINER SUBASSEMBLY

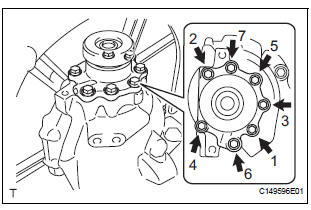

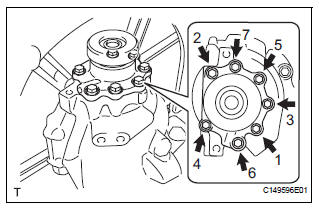

(f) Tighten the 7 bolts evenly in order shown in the illustration.

Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

INSTALL TRANSFER RH BEARING RETAINER SUBASSEMBLY

(g) Remove the SST.

15. INSPECT DIFFERENTIAL RING GEAR BACKLASH

INSPECT DIFFERENTIAL RING GEAR BACKLASH

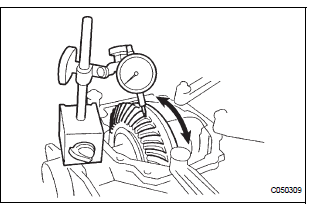

(a) Set the dial gauge perpendicular to the ring gear face, fix the driven pinion, and check backlash by moving the ring gear.

Backlash: 0.10 to 0.15 mm (0.0039 to 0.0059 in.)

NOTICE: Measure it at 3 points or more on the ring gear periphery.

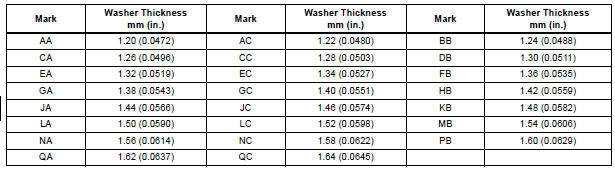

(b) If the measured value is out of standard, select a proper washer for the center differential case tapered roller bearing on the LH side from the table below and install it to obtain the standard value.

INSPECT DIFFERENTIAL RING GEAR BACKLASH

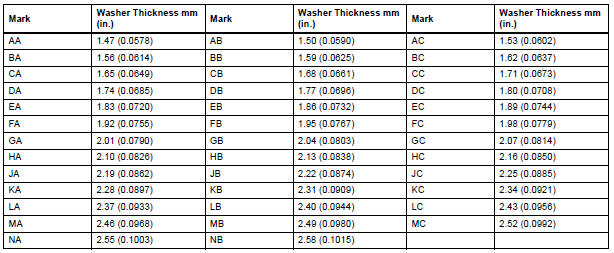

HINT: When the backlash is larger or smaller than the standard, select a thinner or thicker washer respectively.

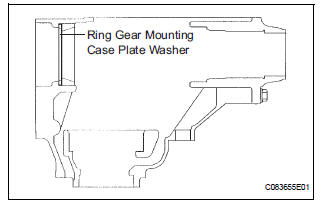

(c) Ring gear mounting case plate washer location is shown in the illustration.

INSPECT DIFFERENTIAL RING GEAR BACKLASH

16. INSPECT TOOTH CONTACT BETWEEN RING GEAR AND DRIVE PINION

INSPECT TOOTH CONTACT BETWEEN RING GEAR AND DRIVE PINION

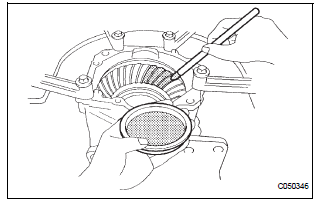

(a) Apply red lead primer thinly and uniformly to both faces of the ring gear and rotate it several times.

NOTICE: Check the tooth contact on the ring gear at 4 places or more.

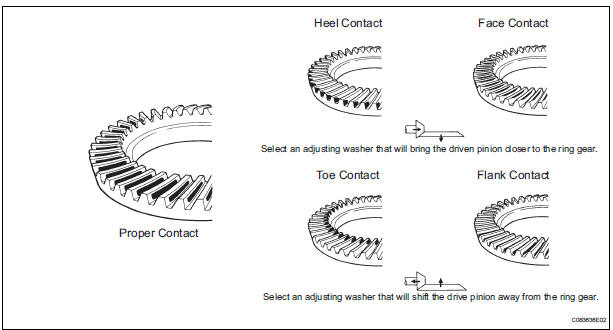

(b) Observe the pattern shown by red lead primer.

INSPECT TOOTH CONTACT BETWEEN RING GEAR AND DRIVE PINION

(c) In case of poor tooth contact, select a washer for the driven pinion bearing front side from the following table and replace it.

NOTICE: If the washer thickness is changed, the backlash will be also changed.

INSPECT TOOTH CONTACT BETWEEN RING GEAR AND DRIVE PINION

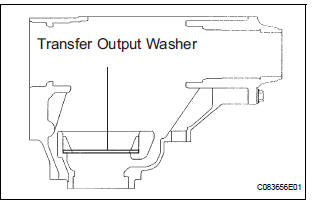

(d) The location of the transfer output washer for tooth contact adjustment is shown in the illustration

INSPECT TOOTH CONTACT BETWEEN RING GEAR AND DRIVE PINION

17. ADJUST TOTAL PRELOAD

ADJUST TOTAL PRELOAD

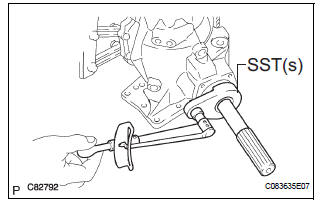

(a) Using SST(s) and a torque wrench, measure the initial torque with the driven pinion bearing contact with the ring gear face.

SST 09326-20011

Torque: New bearing +0.2 to 0.4 N*m (+2.3 to 3.9 kgf*cm, 1.8 to 3.5 in.*lbf) Used bearing +0.15 to 0.30 N*m (+1.6 to 3.1 kgf*cm, 1.3 to 2.7 in.*lbf)

NOTICE: Before measurement, rotate the bearing in both directions several times to make it fit.

HINT: Use a torque wrench with a fulcrum length of 160 mm (6.30 in.)

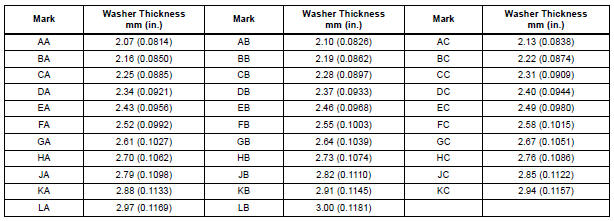

(b) If the value is out of standard range, select the washer for the center differential case tapered roller bearing RH side from the following table and replace it.

ADJUST TOTAL PRELOAD

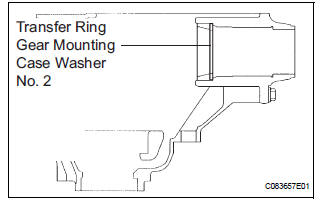

(c) The location of the transfer ring gear mounting case washer No. 2 for preload adjustment is show in the illustration.

ADJUST TOTAL PRELOAD

ADJUST TOTAL PRELOAD

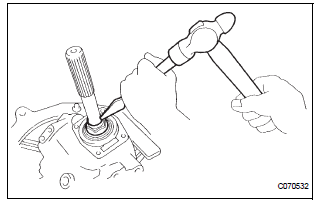

(d) Using a chisel, stake the transfer gear nut.

18. REMOVE TRANSFER RH BEARING RETAINER SUBASSEMBLY

REMOVE TRANSFER RH BEARING RETAINER SUBASSEMBLY

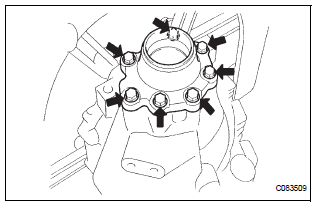

(a) Remove the 7 bolts from the transfer RH bearing retainer sub-assembly.

REMOVE TRANSFER RH BEARING RETAINER SUBASSEMBLY

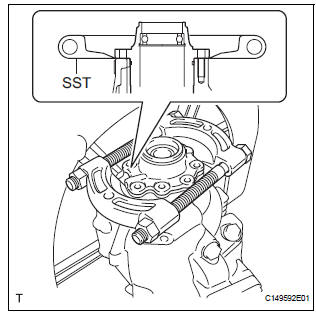

(b) Using SST, make a clearance between the transfer RH bearing retainer sub-assembly and the transfer case.

SST 09950-00020

(c) Remove the SST.

REMOVE TRANSFER RH BEARING RETAINER SUBASSEMBLY

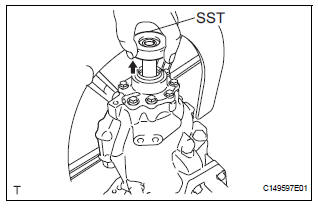

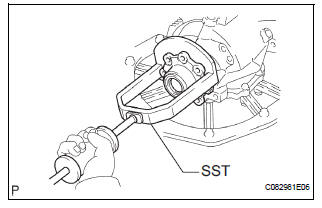

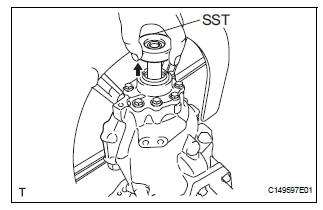

(d) Using SST, remove the transfer RH bearing retainer sub-assembly from the transfer case.

SST 09520-10021

19. REMOVE CENTER DIFFERENTIAL CASE TAPERED ROLLER BEARING

REMOVE CENTER DIFFERENTIAL CASE TAPERED ROLLER BEARING

(a) Fix the transfer RH bearing retainer sub-assembly in a vise.

(b) Using SST(s), remove the center differential case tapered roller bearing RH outer race and transfer ring gear mounting case washer No. 2 from the transfer RH bearing retainer sub-assembly.

SST 09308-00010

20. INSTALL SIDE GEAR SHAFT HOLDER BEARING

INSTALL SIDE GEAR SHAFT HOLDER BEARING

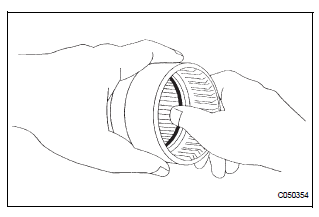

(a) Install the side gear shaft holder bearing to the transfer RH bearing retainer sub-assembly.

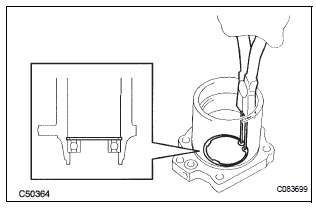

(b) Using snap ring pliers, install the side gear shaft holder hole snap ring.

HINT: Check that the side gear shaft holder hole snap ring fits in the groove of the transfer RH bearing retainer sub-assembly.

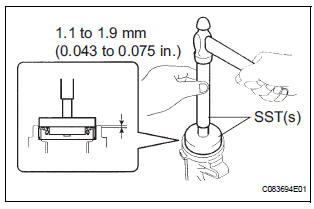

21. INSTALL TRANSFER RH BEARING RETAINER OIL SEAL

INSTALL TRANSFER RH BEARING RETAINER OIL SEAL

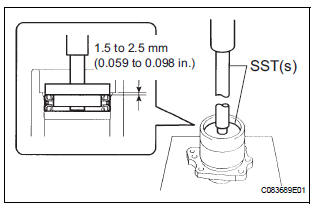

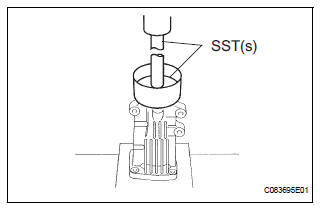

(a) Using SST(s) and a press, install the transfer RH bearing retainer oil seal No. 2 to the transfer RH bearing retainer sub-assembly.

SST 09950-60010 (09951-00350, 09951-00560, 09952-06010), 09950-70010 (09951-07150)

NOTICE: Carefully press-fit so that the oil seal will not be tilted.

(b) Apply small amount of MP grease No. 2 to the oil seal lip.

22. INSTALL NO. 2 TRANSFER RING GEAR MOUNTING CASE WASHER

(a) Install the No. 2 selected transfer ring gear mounting washer to the transfer RH bearing retainer sub-assembly.

23. INSTALL CENTER DIFFERENTIAL CASE TAPERED ROLLER BEARING

 INSTALL CENTER DIFFERENTIAL CASE TAPERED ROLLER BEARING

(a) Using SST(s) and a press, install the center differential case tapered roller bearing RH outer race to the transfer RH bearing retainer subassembly.

SST 09950-60010 (09951-00620), 09950-70010 (09951-07150)

24. INSTALL O-RING

(a) Coat the 2 O-rings with hypoid gear oil.

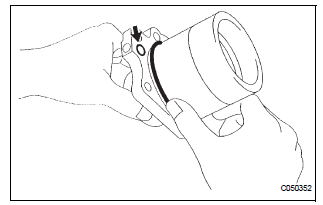

(b) Install the 2 O-rings to the transfer RH bearing retainer sub-assembly.

 INSTALL O-RING

NOTICE: Be careful not to twist the O-ring and fit it properly in the retainer's groove.

25. INSTALL TRANSFER RH BEARING RETAINER SUBASSEMBLY

 INSTALL TRANSFER RH BEARING RETAINER SUBASSEMBLY

(a) Place the transfer with the surface where the transfer RH bearing retainer sub-assembly is facing up.

(b) Align the centers of the transfer ring gear mounting case and the transfer case.

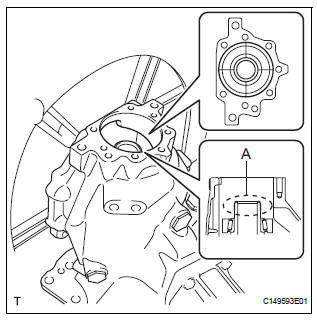

(c) Apply MP grease No. 2 thinly to area A as shown in the illustration.

HINT: Apply MP grease No. 2 to prevent the oil seal lip from rolling back.

 INSTALL TRANSFER RH BEARING RETAINER SUBASSEMBLY

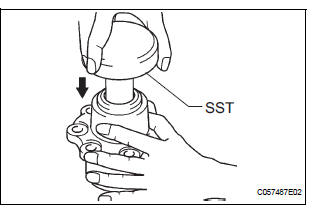

(d) Insert SST into the transfer RH bearing retainer subassembly.

SST 09387-00090

NOTICE: Insert SST straight in order not to damage the oil seal.

INSTALL TRANSFER RH BEARING RETAINER SUBASSEMBLY

(e) With SST and the transfer RH bearing subassembly in close contact, install the transfer RH bearing retainer sub-assembly together with SST into the transfer case.

NOTICE:

HINT

(f) Make sure that the transfer RH bearing retainer subassembly and transfer case contact closely.

(g) Tighten the 7 bolts evenly in order shown in the illustration.

Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

INSTALL TRANSFER RH BEARING RETAINER SUBASSEMBLY

(h) Remove the SST.

INSTALL TRANSFER RH BEARING RETAINER SUBASSEMBLY

26. INSPECT TOTAL PRELOAD

INSPECT TOTAL PRELOAD

(a) Using SST(s) and a torque wrench, measure the initial torque with the driven pinion being in contact with the ring gear face.

SST 09326-20011

Torque: New bearing +0.2 to 0.4 N*m (+2.3 to 3.9 kgf*cm, 1.8 to 3.5 in.*lbf) Used bearing +0.15 to 0.30 N*m (+1.6 to 3.1 kgf*cm, 1.3 to 2.7 in.*lbf)

HINT: Use a torque wrench with a fulcrum length of 160mm (6.30 in.)

27. INSTALL TRANSFER RH BEARING RETAINER OIL SEAL

INSTALL TRANSFER RH BEARING RETAINER OIL SEAL

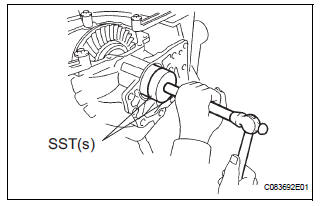

(a) Using SST(s), install the transfer RH bearing retainer oil seal to the transfer RH bearing retainer sub-assembly to the position as shown in the illustration.

SST 09223-46011

NOTICE: Install the oil seal carefully so that it will not be tilted.

(b) Apply MP grease to the oil seal lip.

28. INSTALL TRANSFER CASE OIL SEAL

INSTALL TRANSFER CASE OIL SEAL

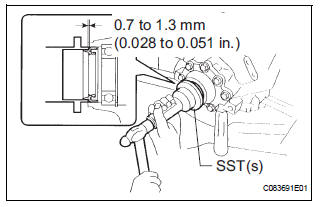

(a) Using(s), install the transfer case oil seal to the transfer case at the position as shown in the illustration.

SST 09387-00010, 09950-70010 (09951-07150)

NOTICE: Install the oil seal carefully so that it will not be tilted.

(b) Apply small amount of MP grease to the oil seal lip.

29. INSTALL CTR DIFFERENTIAL LOCK SLEEVE

INSTALL CTR DIFFERENTIAL LOCK SLEEVE

(a) Coat a new O-ring with hypoid gear oil.

(b) Install the O-ring to the CTR differential lock sleeve.

NOTICE: Be careful not to twist the O-ring and fit it properly in the retainer's groove.

INSTALL CTR DIFFERENTIAL LOCK SLEEVE

(c) Using SST(s), install the CTR differential lock sleeve to the transfer case.

SST 09950-60010 (09951-00610), 09950-70010 (09951-07150)

INSTALL CTR DIFFERENTIAL LOCK SLEEVE

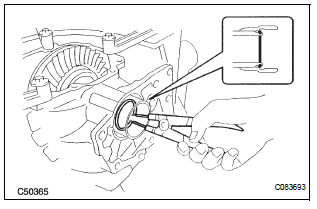

(d) Using snap ring pliers, install the shaft snap ring.

NOTICE: Check that the snap ring is fitted in the groove of the ring gear mounting case.

30. INSTALL TRANSFER EXTENSION HOUSING TYPE T OIL SEAL

INSTALL TRANSFER EXTENSION HOUSING TYPE T OIL SEAL

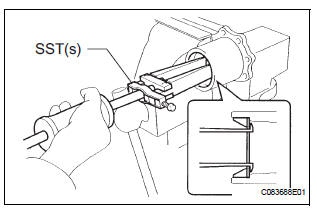

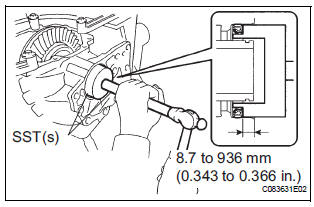

(a) Using SST(s), install the transfer extension housing type T oil seal to the transfer extension housing at the position as shown in the illustration.

SST 09950-60010 (09951-00380, 09951-00580, 09951-07150, 09952-06010), 09950-70010

NOTICE: Install the oil seal carefully so that it will not be tilted.

(b) Apply small amount of MP grease No. 2 to the oil seal lip.

31. INSTALL TRANSFER EXTENSION HOUSING DUST DEFLECTOR

INSTALL TRANSFER EXTENSION HOUSING DUST DEFLECTOR

(a) Using SST(s) and press, install a new transfer extension housing dust deflector to the transfer extension housing sub-assembly.

SST 09950-60020 (09951-00710), 09950-70010 (09951-07150)

32. INSTALL TRANSFER EXTENSION HOUSING SUBASSEMBLY

INSTALL TRANSFER EXTENSION HOUSING SUBASSEMBLY

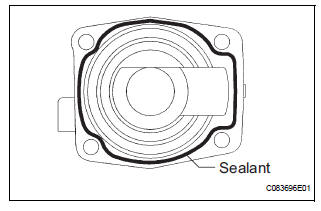

(a) Apply sealant 1281 to the transfer extension housing sub-assembly in continuous beaded from of 1.2 mm diameter as show in the illustration.

NOTICE:

INSTALL TRANSFER EXTENSION HOUSING SUBASSEMBLY

(b) Install the transfer extension housing sub-assembly to the transfer case with the 4 bolts.

Torque: 26 N*m (260 kgf*cm, 19 ft.*lbf) (c) Remove the transfer assembly from the overhaul attachment.

33. INSTALL TRANSFER AND TRANSAXLE SETTING STUD BOLT

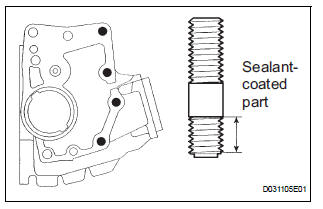

(a) Install the transfer and transaxle setting stud bolts to the parts of the transfer case as show in the illustration.

INSTALL TRANSFER AND TRANSAXLE SETTING STUD BOLT

Torque: 39 N*m (400 kgf*cm, 30 ft.*lbf)

NOTICE: Install the sealant-coated side of the transfer and transaxle stud bolt to the transfer case.

34. INSTALL TRANSFER CASE STRAIGHT PIN

INSTALL TRANSFER CASE STRAIGHT PIN

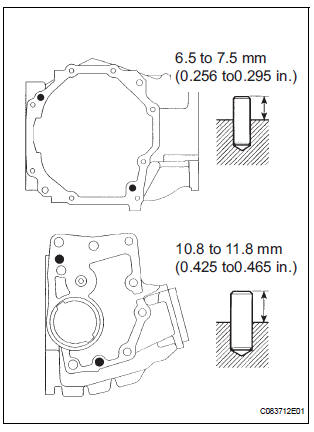

(a) Using a plastic hammer, install the transfer case straight pins to the transfer case as shown in thee illustration

35. INSTALL TRANSFER DYNAMIC DAMPER

 INSTALL TRANSFER DYNAMIC DAMPER

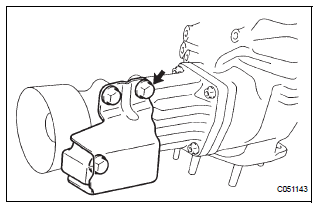

(a) Install the transfer dynamic damper to the transfer extension housing sub-assembly with the 3 bolts.

Torque: 26 N*m (260 kgf*cm, 19 ft.*lbf)

36. INSTALL BREATHER OIL DEFLECTOR

INSTALL BREATHER OIL DEFLECTOR

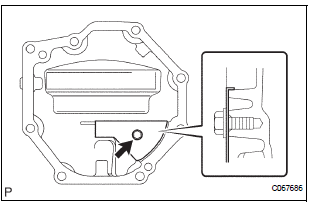

(a) Install the breather oil deflector to the transfer case cover No. 1 with the bolt.

Torque: 6.5 N*m (66 kgf*cm, 57 in.*lbf)

NOTICE: Be careful about the direction of the deflector's fold.

37. INSTALL NO. 1 TRANSFER CASE COVER

 INSTALL NO. 1 TRANSFER CASE COVER

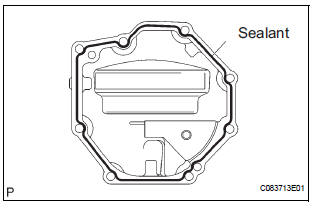

(a) Apply sealant 1281 to the transfer case cover No. 1 in a continuous bead of 1.2 mm diameter as show in the illustration.

NOTICE:

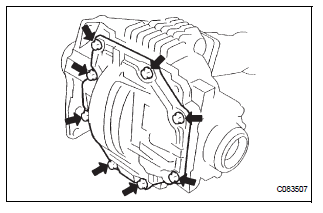

(b) Install the transfer case cover No. 1 to the transfer case with 8 bolts.

INSTALL NO. 1 TRANSFER CASE COVER

Torque: 20 N*m (200 kgf*cm, 14 ft.*lbf)

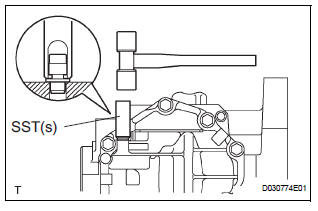

38. INSTALL TRANSFER CASE BREATHER PLUG

INSTALL TRANSFER CASE BREATHER PLUG

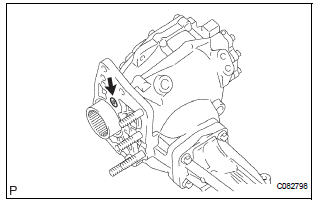

(a) Using SST(s) and a hammer, install the transfer case breather plug to the transfer case cover No. 1.

SST 09612-10093 (09612-10061)

39. INSTALL TRANSFER COVER GASKET

INSTALL TRANSFER COVER GASKET

(a) Install a new transfer cover gasket to the transfer case.

Inspection
1. INSPECT PRELOAD (a) Using SST(s) and a torque wrench, check the initial torque within the backlash range. SST 09326-20011 Torque: 0.9 to 1.4 N*m (9 to 14 kgf*cm, 8.0 to 12.4 in.*lbf) HINT ...

Transfer case oil seal
COMPONENTS ...

Other materials:

Catalyst monitor (active air-fuel ratio control type)
(a) Preconditions The monitor will not run unless: The MIL is OFF. (b) Drive Pattern (1) Connect an intelligent tester. (2) Turn the ignition switch to the ON position. (3) Turn the tester or scan tool ON. (4) Clear the DTCs. (5) Start the engine and warm it up. (6) Drive ...

Yaw Rate Sensor Communication Stop Mode
DESCRIPTION Detection Item Symptom Trouble Area Yaw Rate Sensor Communication Stop Mode "Yaw rate/ Deceleration sensor" is not displayed on the "Communication Bus Check" screen of the intelligent tester Applies to & ...

Perform zero point calibration of yaw rate and deceleration sensor (when using intelligent tester)
(a) Connect the intelligent tester to the DLC3. (b) Turn the ignition switch to the ON position. (c) Operate the intelligent tester to erase the codes (select "RESET MEMORY"). HINT: Refer to the intelligent tester operator's manual for further details. (d) Using the intell ...

© 2011-2024 Copyright www.tsienna.net
