Toyota Sienna Service Manual: Removal
1. REMOVE OUTSIDE MOULDING

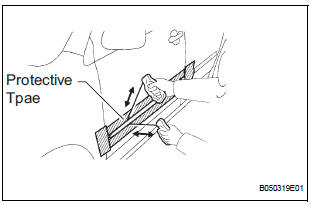

- Put protective tape around the outside moulding.
- Using a heat light, heat the moulding between 40 to
60 C (104 to 140 F).
NOTICE: Do not heat the moulding excessively.
- Tie both piano wire ends to a wooden block or a similar object.
- Cut off the tape by pulling the piano wire and remove the outside moulding with reference pins remaining on the moulding.
NOTICE:
- If reusing the outside moulding, take care not to damage the outside moulding.
- Do not damage the body.
- Be careful of the reference pins on the outside moulding when removing the outside moulding.
Outside moulding
COMPONENTS
...
Installation
1. INSTALL OUTSIDE MOULDING
Using a heat light, heat the mounting surface of the
vehicle body between 40 to 60 C (104 to 140 F).
NOTICE:
Do not heat the body excessively.
Remove the tape f ...
