Toyota Sienna Service Manual: Removal
1. REMOVE FRONT FENDER GARNISH
- Using a moulding remover, disengage the 3 clips to remove the front fender garnish

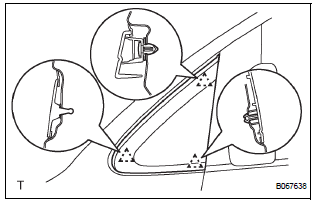

Front fender garnish
COMPONENTS
...
Installation
1. INSTALL FRONT FENDER GARNISH
Engage the 3 clips to install the front fender garnish.
...
