1. REMOVE BATTERY
2. REMOVE AIR CLEANER ASSEMBLY
HINT: (See page EM-26)

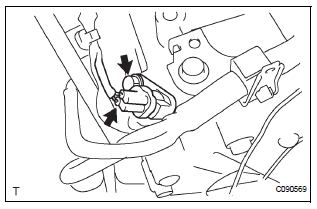

3. REMOVE SPEED SENSOR (NT SENSOR)

(a) Disconnect the speed sensor connector.
(b) Remove the bolt and speed sensor.

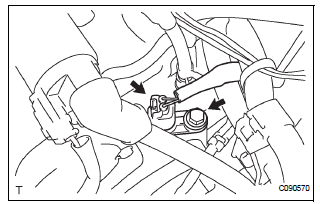

4. REMOVE SPEED SENSOR (NC SENSOR)

(a) Disconnect the speed sensor connector.
(b) Remove the bolt and speed sensor.
Speed sensor
