Toyota Sienna Service Manual: Stop light switch

Toyota Sienna Service Manual / Lighting / Stop light switch

ON-VEHICLE INSPECTION

1. STOP LIGHT SWITCH ASSEMBLY

STOP LIGHT SWITCH ASSEMBLY

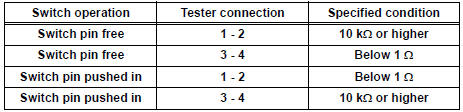

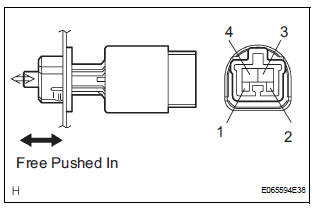

  1.  Check the resistance between the terminals at each switch position as shown ion the chart.

Resistance

Resistance
