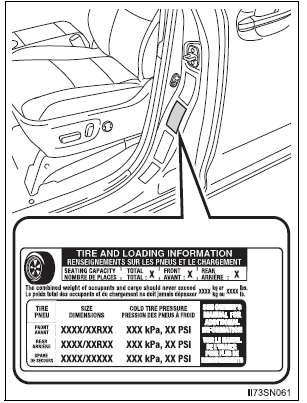

The recommended cold tire inflation pressure and tire size are displayed on the tire and loading information label.
Inspection and adjustment procedureShort to GND in Driver Side Squib Circuit
DTC B0102/11 Short to GND in Driver Side Squib Circuit
DESCRIPTION
The driver side squib circuit consists of the center airbag sensor assembly,
the spiral cable and the
steering pad.
The circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0102/11 is recorded when ...
Installation
1. INSTALL BRAKE MASTER CYLINDER
(a) Install the brake master cylinder with the 2 nuts.
Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)
(b) Slide the clip and connect the brake master cylinder
reservoir hose.
(c) Using SST, connect the 2 brake tube to the brake
master cylinder.
SST 09023-001 ...
Disassembly
1. REMOVE STEERING INTERMEDIATE SHAFT ASSEMBLY
(a) Align the matchmarks on the steering intermediate
shaft assembly and main shaft.
(b) Remove the bolt and steering intermediate shaft
assembly.
2. REMOVE KEY CYLINDER LIGHT ASSEMBLY (w/o
Engine Immobiliser System)
3. REMOVE TRANSPONDER K ...
