Toyota Sienna Service Manual: Underdrive planetary gear

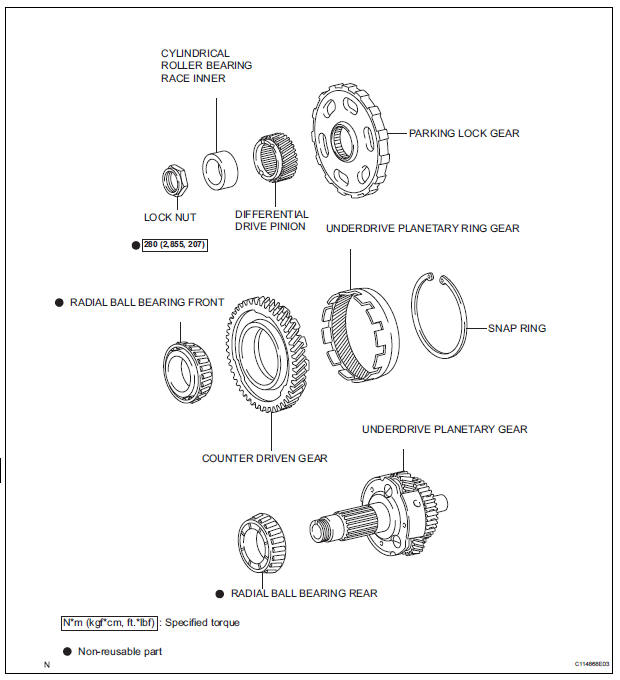

COMPONENTS

Underdrive planetary gear

Disassembly
1. INSPECT UNDERDRIVE PLANETARY GEAR PRELOAD HINT: (See page AX-260) 2. REMOVE FRONT PLANETARY GEAR NUT (a) Using SST, loosen the staked part of the lock nut. SST 09930-00010 (09931-00010, ...
