Toyota Sienna Service Manual: USE SIMULATION METHOD TO CHECK

DTC B0113/42 Short to B+ in Side Squib RH Circuit

DESCRIPTION

The side squib RH circuit consists of the center airbag sensor assembly and the front seat side airbag assembly RH.

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0113/42 is recorded when a short to B+ is detected in the side squib RH circuit.

DESCRIPTION

WIRING DIAGRAM

INSPECTION PROCEDURE

HINT:

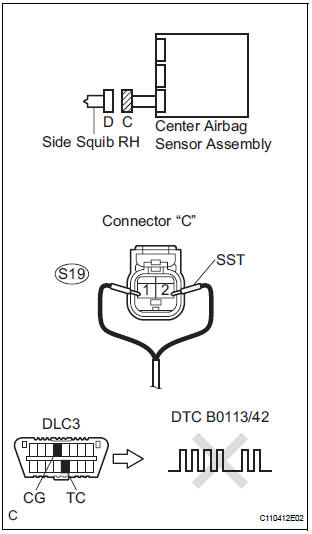

1 CHECK FRONT SEAT SIDE AIRBAG ASSEMBLY RH (SIDE SQUIB RH)

CHECK FRONT SEAT SIDE AIRBAG ASSEMBLY RH

  1. Turn the ignition switch to the LOCK position.
  2.  Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
  3.  Disconnect the connectors from the front seat side airbag assembly RH.
  4.  Connect the black wire side of SST (resistance 2.1 Ω) to the floor wire No. 2.

CAUTION: Never connect a tester to the front seat side airbag assembly RH (side squib RH) for measurement, as this may lead to a serious injury due to airbag deployment.

NOTICE: Do not forcibly insert the SST into the terminals of the connector when connecting.

Insert the SST straight into the terminals of the connector.

SST 09843-18060

  1.  Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
  2.  Turn the ignition switch to the ON position, and wait for at least 60 seconds.
  3.  Clear the DTCs stored in memory.
  4.  Turn the ignition switch to the LOCK position.
  5.  Turn the ignition switch to the ON position, and wait for at least 60 seconds.
  6.  Check the DTCs

OK: DTC B0113/42 is not output.

HINT: Codes other than DTC B0113/42 may be output at this time, but they are not related to this check.

REPLACE FRONT SEAT ASSEMBLY RH

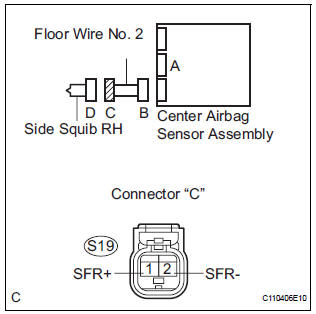

2 CHECK FLOOR WIRE NO.2 (SIDE SQUIB RH CIRCUIT)

CHECK FLOOR WIRE NO.2

  1. Turn the ignition switch to the LOCK position.
  2.  Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
  3.  Disconnect the SST (resistance 2.1 Ω) from the floor wire No. 2.
  4.  Disconnect the connector from the center airbag sensor assembly.
  5.  Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
  6.  Turn the ignition switch to the ON position.

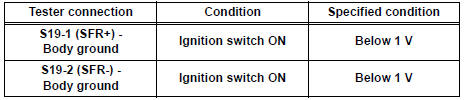

  7.  Measure the voltage according to the value(s) in the table below.

Standard voltage

Standard voltage

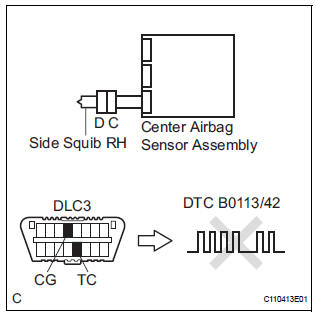

3 CHECK CENTER AIRBAG SENSOR ASSEMBLY

CHECK CENTER AIRBAG SENSOR ASSEMBLY

  1. Turn the ignition switch to the LOCK position.
  2.  Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
  3.  Connect the connectors to the front seat side airbag assembly RH and the center airbag sensor assembly.
  4.  Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
  5.  Turn the ignition switch to the ON position, and wait for at least 60 seconds.
  6.  Clear the DTCs stored in memory.
  7.  Turn the ignition switch to the LOCK position.
  8.  Turn the ignition switch to the ON position, and wait for at least 60 seconds.
  9.  Check the DTCs.

OK: DTC B0113/42 is not output.

HINT: Codes other than code B0113/42 may be output at this time, but they are not related to this check.

USE SIMULATION METHOD TO CHECK

Short to GND in Side Squib RH Circuit
