Toyota Sienna Service Manual: Components

Components

Components

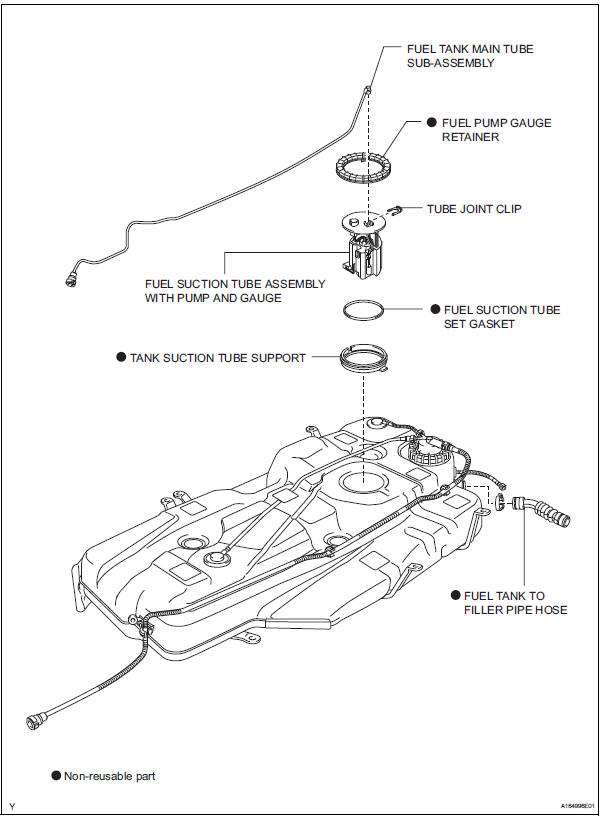

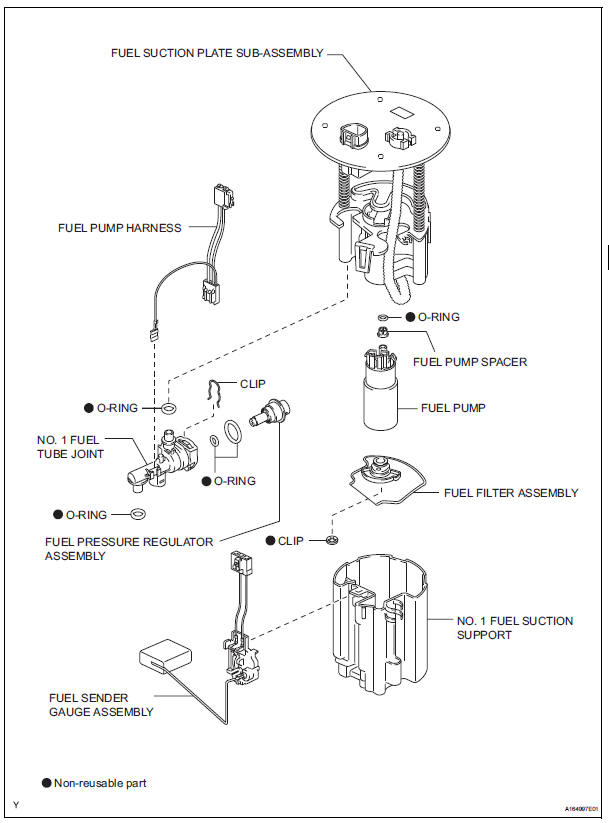

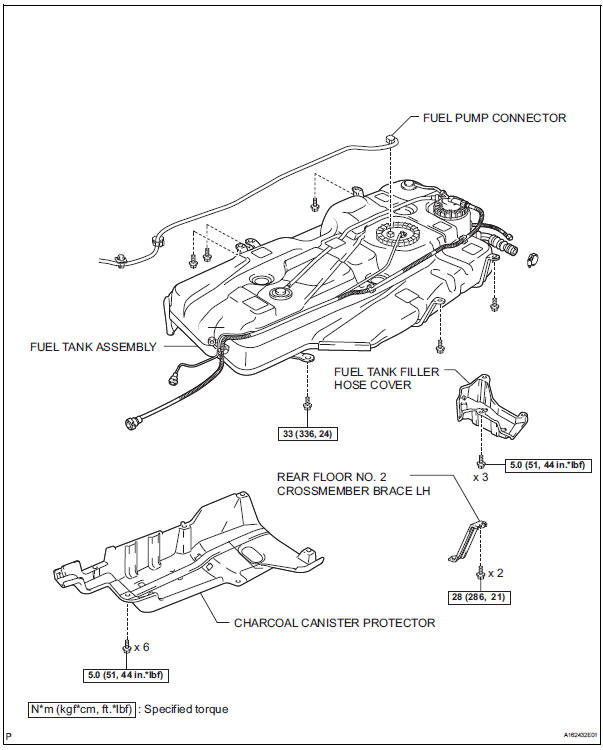

Components

Fuel pump
...

Removal
1. DISCHARGE FUEL SYSTEM PRESSURE (See page FU-1) 2. REMOVE CHARCOAL CANISTER PROTECTOR (a) Remove the 6bolts and the charcoal canister protector. 3. REMOVE REAR FLOOR NO. 2 CROSSMEMBER BRACE LH ...
