Toyota Sienna Service Manual: Cranking Holding Function Circuit

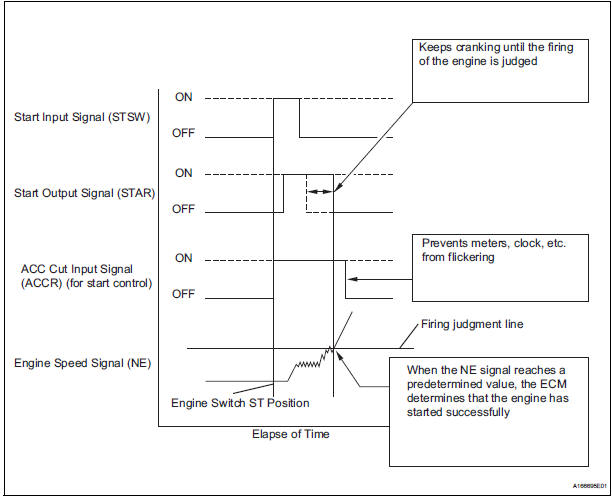

DESCRIPTION
The system detects the ignition switch's starting signal (STSW) and then
supplies current to the starter
until the ECM judges that the engine has started successfully. The purpose is to
reduce the holding time
of the ignition key.
![DESCRIPTION](images/books/424/76/index467.jpg)
WIRING DIAGRAM
Refer to DTC P0617.
INSPECTION PROCEDURE
1 CHECK CRANKING
- When starting the engine, check whether the starter
motor starts.
OK:
Engine is cranking.
2 READ VALUE OF INTELLIGENT TESTER (STA SIGNAL)
- Connect the intelligent tester to the DLC3.
- Turn the ignition switch to the ON position.
- Turn the tester on.
- Select the following menu items: DIAGNOSIS /
ENHANCED OBDII / DATA LIST / ALL / STARTER SIG.
- Check the result when the ignition switch is turned ON
and when the engine is started.
OK
![READ VALUE OF INTELLIGENT TESTER](images/books/424/76/index468.jpg)

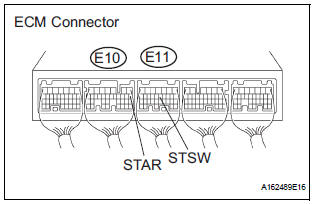

3 CHECK ECM (STAR AND STSW VOLTAGE)
![CHECK ECM](images/books/424/76/index469.jpg)
- Measure the voltage between the terminals of the ECM
connector and body ground while cranking the engine.
Standard voltage
![Standard voltage](images/books/424/76/index316.gif)
Result
![Result](images/books/424/76/index470.jpg)

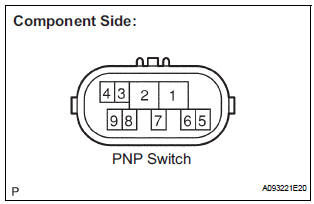

4 INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
![INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY](images/books/424/76/index471.jpg)
- Inspect the Park/Neutral Position (PNP) switch.
- Disconnect the P1 PNP switch connector.
- Measure the resistance according to the value(s) in
the table below.

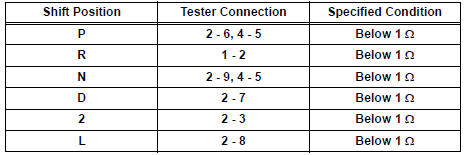

Standard resistance
![Standard resistance](images/books/424/76/index472.jpg)
- Reconnect the PNP switch connector.

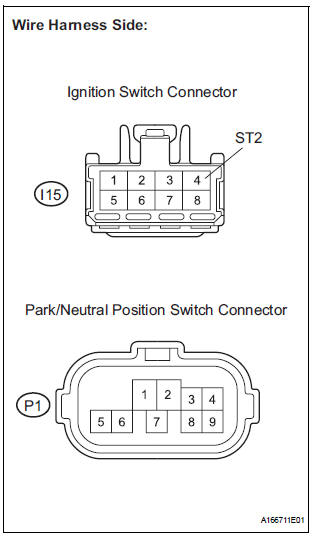

5 CHECK HARNESS AND CONNECTOR (IGNITION SWITCH - PARK/NEUTRAL POSITION
SWITCH)
![CHECK HARNESS AND CONNECTOR](images/books/424/76/index473.jpg)
- Disconnect the I15 ignition switch connector.
- Disconnect the P1 park/neutral position switch
connector.
- Measure the resistance according to the value(s) in the
table below.
Standard resistance (check for open)
![Standard resistance](images/books/424/76/index321.gif)
Standard resistance (check for short)
![Standard resistance](images/books/424/76/index474.jpg)
- Reconnect the ignition switch connector.
- Reconnect the park/neutral position switch connector.
REPAIR OR REPLACE HARNESS OR CONNECTOR (PARK/NEUTRAL POSITION SWITCH - ECM)

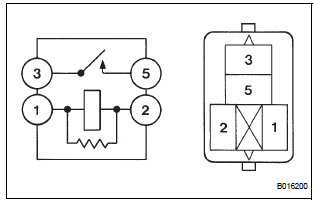

6 INSPECT ST RELAY
![INSPECT ST RELAY](images/books/424/76/index323.gif)
- Remove the ST relay from the No. 3 relay block.
- Measure the resistance according to the value(s) in the
table below.

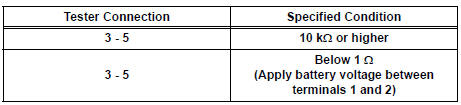

Standard resistance
![Standard resistance](images/books/424/76/index475.jpg)
- Reinstall the ST relay to the No. 3 relay block.

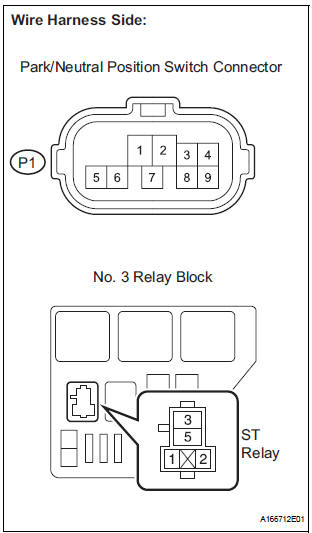

7 CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH - ST RELAY)
![CHECK HARNESS AND CONNECTOR](images/books/424/76/index476.jpg)
- Disconnect the P1 park/neutral position switch
connector.
- Remove the ST relay from the No. 3 relay block.
- Measure the resistance according to the value(s) in the
table below.
Standard resistance (check for open)
![Standard resistance](images/books/424/76/index477.jpg)
Standard resistance (check for short)
![Standard resistance](images/books/424/76/index478.jpg)
- Reconnect the park/neutral position switch connector.
- Reinstall the ST relay to the No. 3 relay block.

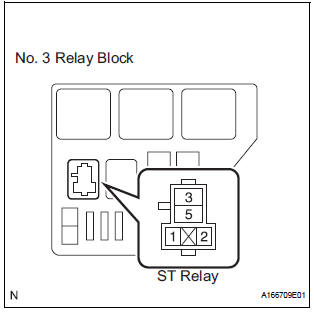

8 CHECK HARNESS AND CONNECTOR (ST RELAY - BODY GROUND)
![CHECK HARNESS AND CONNECTOR](images/books/424/76/index479.jpg)
- Remove the ST relay from the No. 3 relay block.
- Measure the resistance according to the value(s) in the
table below.
Standard resistance
![Standard resistance](images/books/424/76/index480.jpg)
- Reinstall the ST relay to the No. 3 relay block.

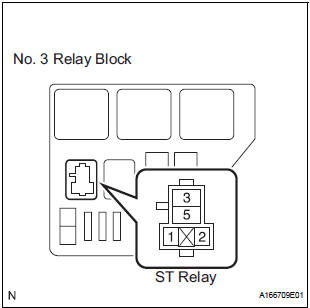

9 CHECK ST RELAY (POWER SOURCE)
![CHECK ST RELAY](images/books/424/76/index481.jpg)
- Remove the ST relay from the No. 3 relay block.
- Measure the voltage according to the value(s) in the
table below.
Standard voltage
![Standard voltage](images/books/424/76/index331.gif)
- Reinstall the ST relay to the No. 3 relay block.

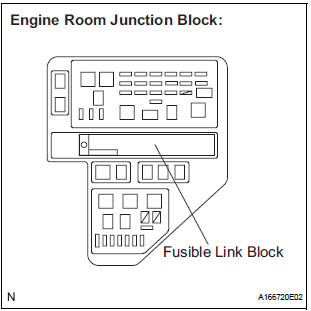

10 INSPECT FUSIBLE LINK
![INSPECT FUSIBLE LINK](images/books/424/76/index482.jpg)
- Remove the fusible link block from the engine room
junction block.
- Measure the resistance according to the value(s) in the
table below.
Standard resistance
![Standard resistance](images/books/424/76/index333.gif)
- Reinstall the fusible link block to the engine room
junction block
REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - STARTER RELAY)
11 INSPECT STARTER ASSEMBLY
- Inspect the starter assembly

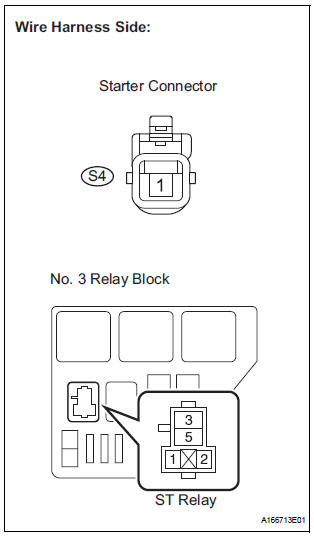

12 CHECK HARNESS AND CONNECTOR (ST RELAY - STARTER ASSEMBLY)
![CHECK HARNESS AND CONNECTOR](images/books/424/76/index483.jpg)
- Remove the ST relay from the No. 3 relay block.
- Disconnect the S4 starter connector.
- Measure the resistance according to the value(s) in the
table below.
Standard resistance (check for open)
![Standard resistance](images/books/424/76/index484.jpg)
Standard resistance (check for short)
![Standard resistance](images/books/424/76/index485.jpg)
- Reconnect the starter connector.
- Reinstall the ST relay to the No. 3 relay block.
REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - STARTER ASSEMBLY)

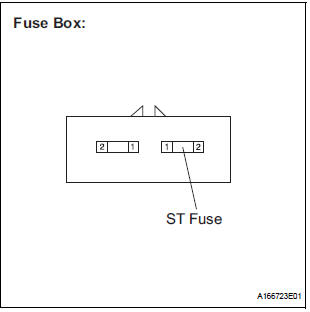

13 INSPECT FUSE (ST FUSE)
![INSPECT FUSE](images/books/424/76/index486.jpg)
- Remove the ST fuse from the fuse box.
- Measure the resistance according to the value(s) in the
table below.
Standard resistance
![Standard resistance](images/books/424/76/index338.gif)
- Reinstall the ST fuse.

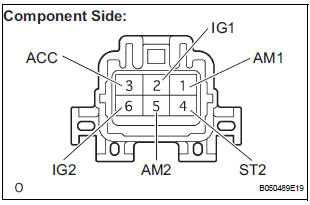

14 INSPECT IGNITION SWITCH ASSEMBLY
![INSPECT IGNITION SWITCH ASSEMBLY](images/books/424/76/index487.jpg)
- Disconnect the I15 ignition switch connector.
- Measure the resistance according to the value(s) in the
table below.

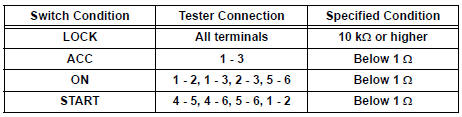

Standard resistance
![Standard resistance](images/books/424/76/index488.jpg)
- Reconnect the ignition switch connector

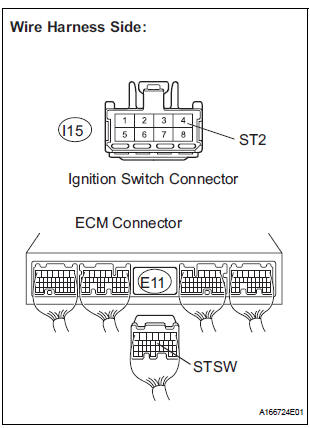

15 CHECK HARNESS AND CONNECTOR (ECM - IGNITION SWITCH ASSEMBLY)
![CHECK HARNESS AND CONNECTOR](images/books/424/76/index489.jpg)
- Disconnect the E11 ECM connector.
- Disconnect the I15 ignition switch connector.
- Measure the resistance according to the value(s) in the
table below.
Standard resistance (check for open)
![Standard resistance](images/books/424/76/index490.jpg)
Standard resistance (check for short)
![Standard resistance](images/books/424/76/index491.jpg)
- Reconnect the ECM connector.
- Reconnect the ignition switch connector.
REPAIR OR REPLACE HARNESS OR CONNECTOR (IGNITION SWITCH - BATTERY)
