Toyota Sienna Service Manual: Customize parameters

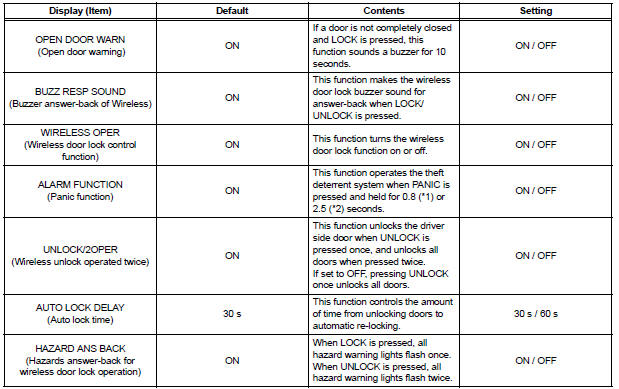

HINT: The following items can be customized.
NOTICE:
- When the customer requests a change in a function, first make sure that customization of the function(s) is possible.
- Be sure to record the current settings before customizing.
- When troubleshooting a function, first make sure that the function is not set to OFF.
HINT:
- (*1): w/ Power Back Door
- (*2): w/o Power Back Door
Registration
HINT:
Register the recognition code when replacing the door
control transmitter or the door control receiver.
Add mode is used to register new recognition codes while
still retai ...
Problem symptoms table
HINT:
Inspect the fuse and relay before investigating the suspected
areas shown in the table below.
WIRELESS DOOR LOCK CONTROL SYSTEM:
...
