Toyota Sienna Service Manual: Problem symptoms table

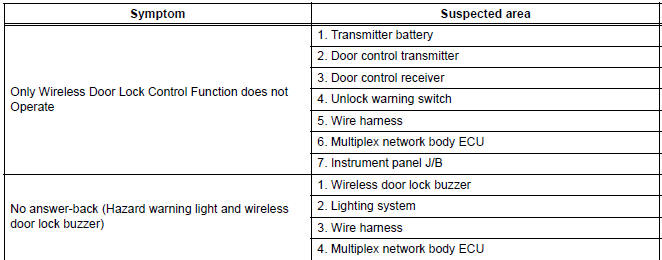

HINT: Inspect the fuse and relay before investigating the suspected areas shown in the table below.

WIRELESS DOOR LOCK CONTROL SYSTEM:

WIRELESS DOOR LOCK CONTROL SYSTEM

Customize parameters
HINT: The following items can be customized. NOTICE:  When the customer requests a change in a function, first make sure that customization of the function(s) is possible.  Be su ...

Terminals of ECU
1. INSTRUMENT PANEL JUNCTION BLOCK (MULTIPLEX NETWORK BODY ECU)  Disconnect the B6, B7 and B9 ECU connectors. Disconnect the 1A, 1C, 1K, 1L and 1P J/B connectors. Check the vol ...

Other materials:

Short to GND in Driver Side Squib Circuit
DTC B0102/11 Short to GND in Driver Side Squib Circuit DESCRIPTION The driver side squib circuit consists of the center airbag sensor assembly, the spiral cable and the steering pad. The circuit instructs the SRS to deploy when deployment conditions are met. DTC B0102/11 is recorded when ...

How to proceed with troubleshooting
1 VEHICLE BROUGHT TO WORKSHOP 2 CUSTOMER PROBLEM ANALYSIS Interview the customer and confirm the trouble. Confirm the problem by duplicating the conditions described by the customer 3 BASIC INSPECTION Basic inspection. Measure the battery voltage. Standard voltage: 11 ...

Open in Occupant Classification ECU Battery Positive Line
DTC B1794 Open in Occupant Classification ECU Battery Positive Line DESCRIPTION This circuit consists of the occupant classification ECU and the power source circuit (battery, fuse, wire harness). DTC B1794 is recorded when a malfunction is detected in the occupant classification ECU or t ...
