Toyota Sienna Service Manual: Customize parameters

Toyota Sienna Service Manual / Engine hood / door / Power back door system / Customize parameters

HINT: The following items can be customized.

NOTICE:

After confirming whether the items requested by the customer are applicable or not for customization, perform the customize operation.
Be sure to record the current settings before customizing.
When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization.

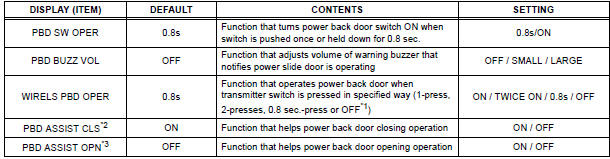

Power Back Door ECU

Power Back Door ECU

*1 Wireless (transmitter switch) operation of the power slide door is disabled.

*2 When this item is set to ON: When the back door is fully open, manually moving the back door approximately 12 cm within 0.5 sec. in the direction that the back door closes activates the power back door system to automatically close.

*3 When this item is set to ON: When the back door is fully closed, pulling the outside activates the power back door system to automatically open after the back door is unlatched.

Operation check

NOTICE: Inspection should be started after conforming that the items listed in the "CUSTOMIZE PARAMETER" for the power back door system have defaulted to the initial settings 1. CHECK ...

Initialization

1. RESET When the back door lock is replaced: The power back door ECU cannot receive a switch signal from the lock. This may cause the power back door system to enter fail-safe mode and DTC ...
